Exploded View

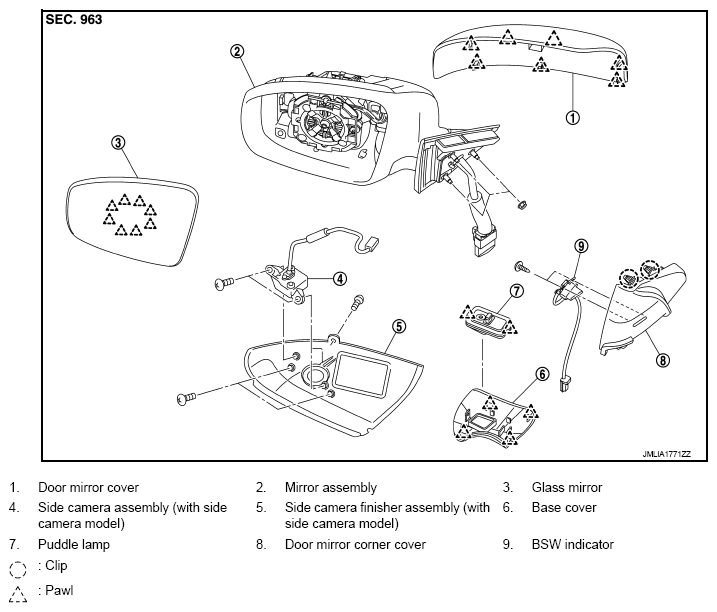

Fig 1: Exploded View Of Outside Mirror
G08996997Courtesy of NISSAN NORTH AMERICA, INC.

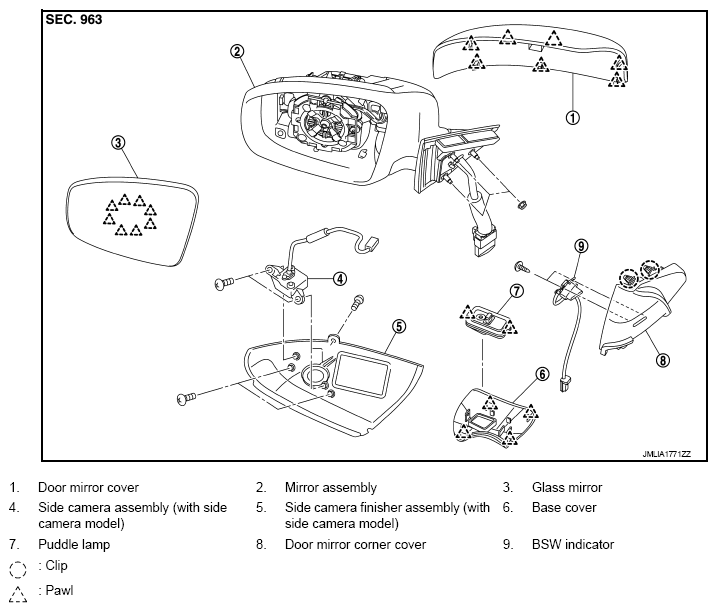

Fig 1: Exploded View Of Outside Mirror
G08997009Courtesy of NISSAN NORTH AMERICA, INC.
