Removal and Installation: Removal

  1. Remove the power window main switch finisher (2).

    Refer to "EXPLODED VIEW " and "REMOVAL AND INSTALLATION ".

  2. Power window main switch (1) is removed from power window main switch finisher (2) using remover tool (A).
    CAUTION: Do not fold the pawl of power window main switch finisher.
    NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).

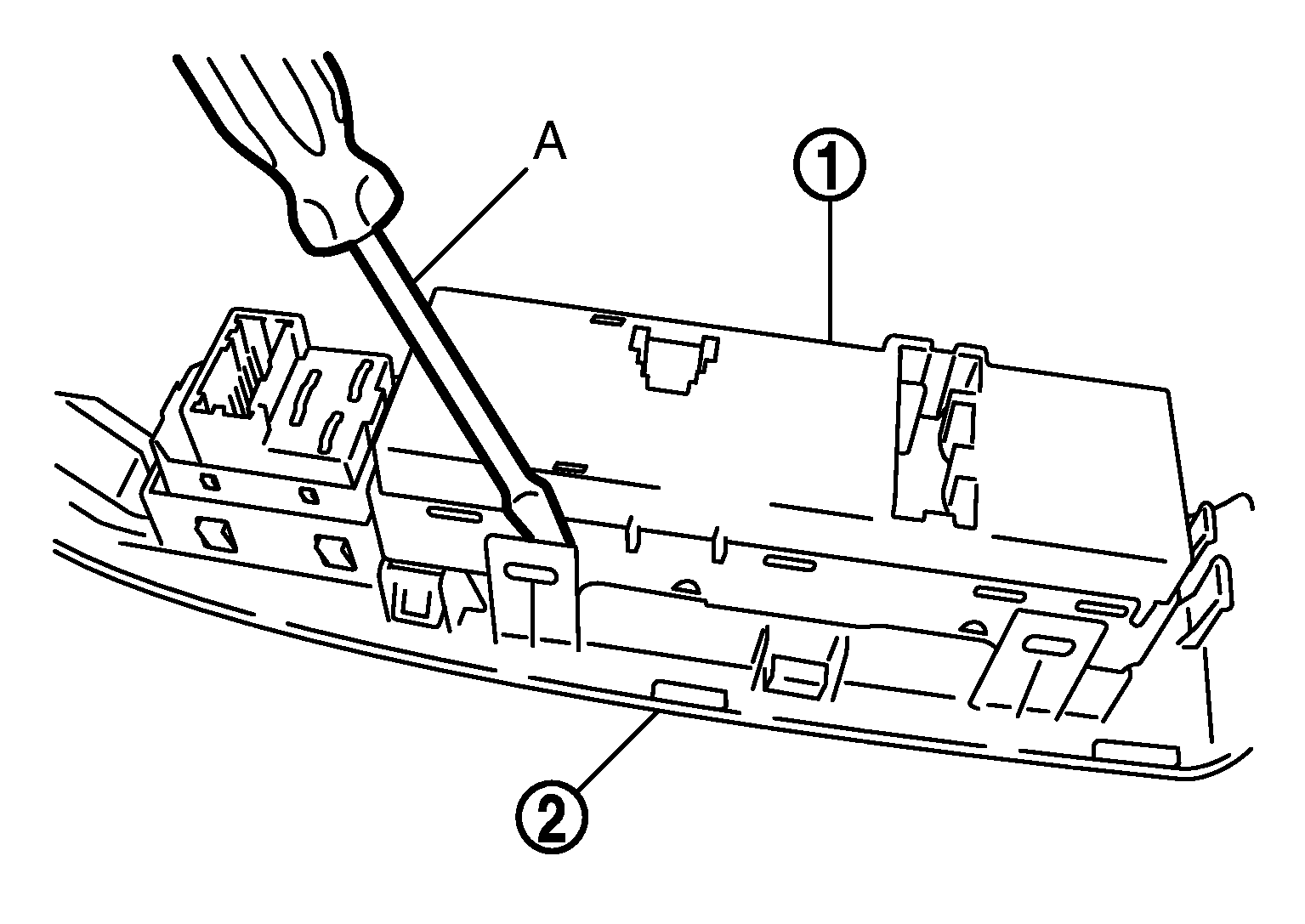

    Fig 1: Removing Power Window Main Switch
    G05728630Courtesy of NISSAN NORTH AMERICA, INC.
