System Diagram

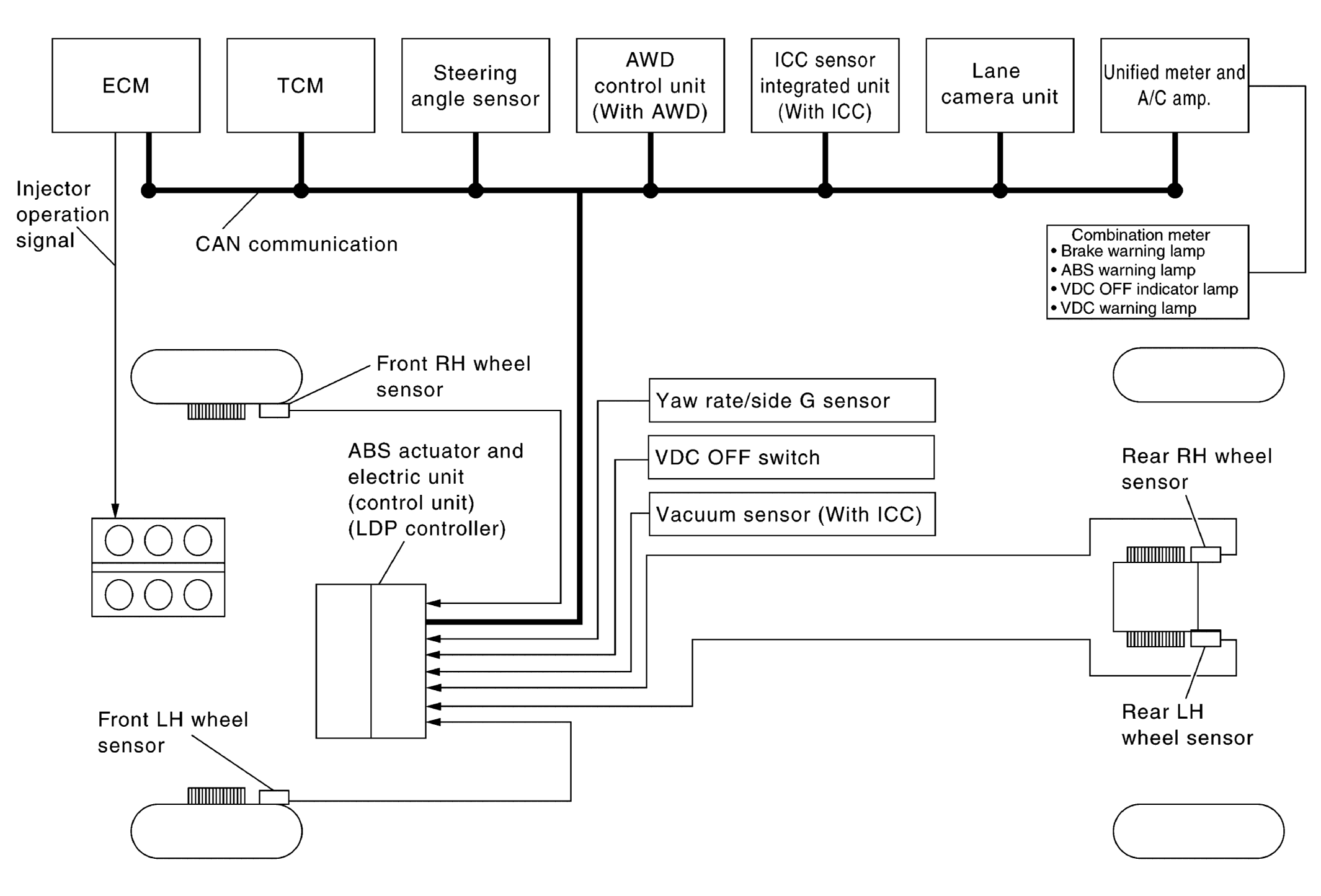

Fig 1: TCS System Diagram (With LDP)
G08993890Courtesy of NISSAN NORTH AMERICA, INC.

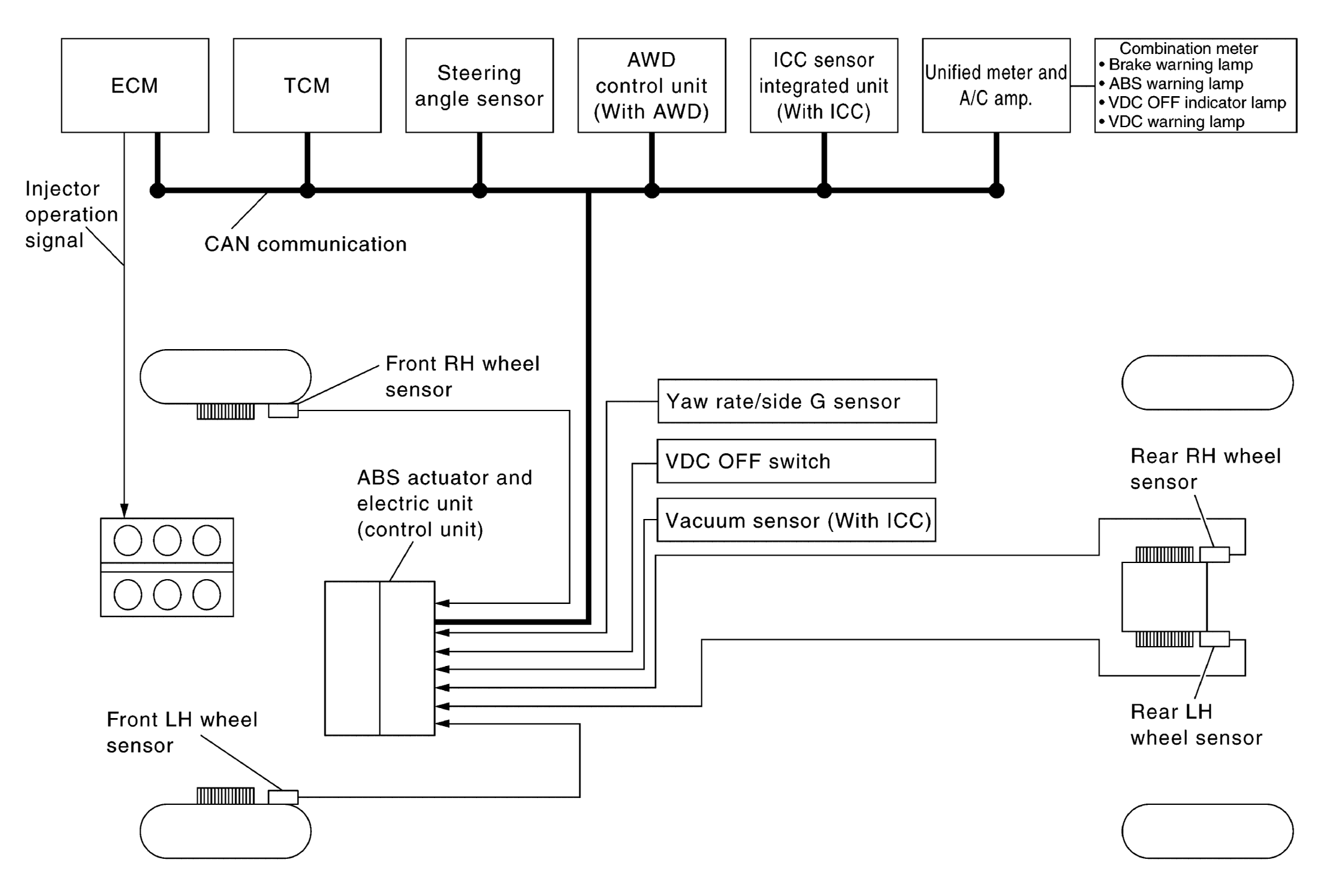

Fig 2: TCS System Diagram (Without LDP)
G08993891Courtesy of NISSAN NORTH AMERICA, INC.
