Disassembly and Assembly: Assembly
Note the following, and assemble in the reverse order of disassembly.
CAUTION:
Before assembly, apply new engine oil to the parts as instructed in the figure.

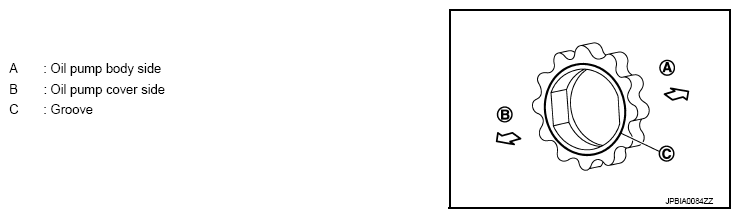

- Install oil pump inner rotor with the groove faced to oil pump cover side.
- When installing oil pump, align crankshaft flat faces with oil pump inner rotor flat faces.
