DTC P1089, P1092: VVEL Control Shaft Position Sensor: Description

VVEL control shaft position sensor (1) is placed on VVEL actuator sub assembly and detects the control shaft position angle.

A magnet is pressed into the arm on the edge of control shaft.

The magnetic field changes as the magnet rotates together with the arm resulting in the output voltage change of the sensor.

VVEL control module detects the actual position angle through the voltage change and sends the signal to ECM.

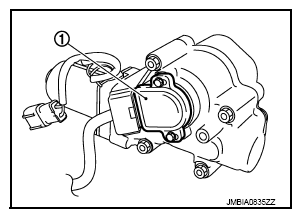

Fig 1: Identifying VVEL Control Shaft Position Sensor

Courtesy of NISSAN NORTH AMERICA, INC.
