Removal and Installation: Removal

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument driver lower panel. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect key slot connector.
  3. Remove the key slot mounting screw (A), and then remove key slot (1) from instrument driver lower panel.

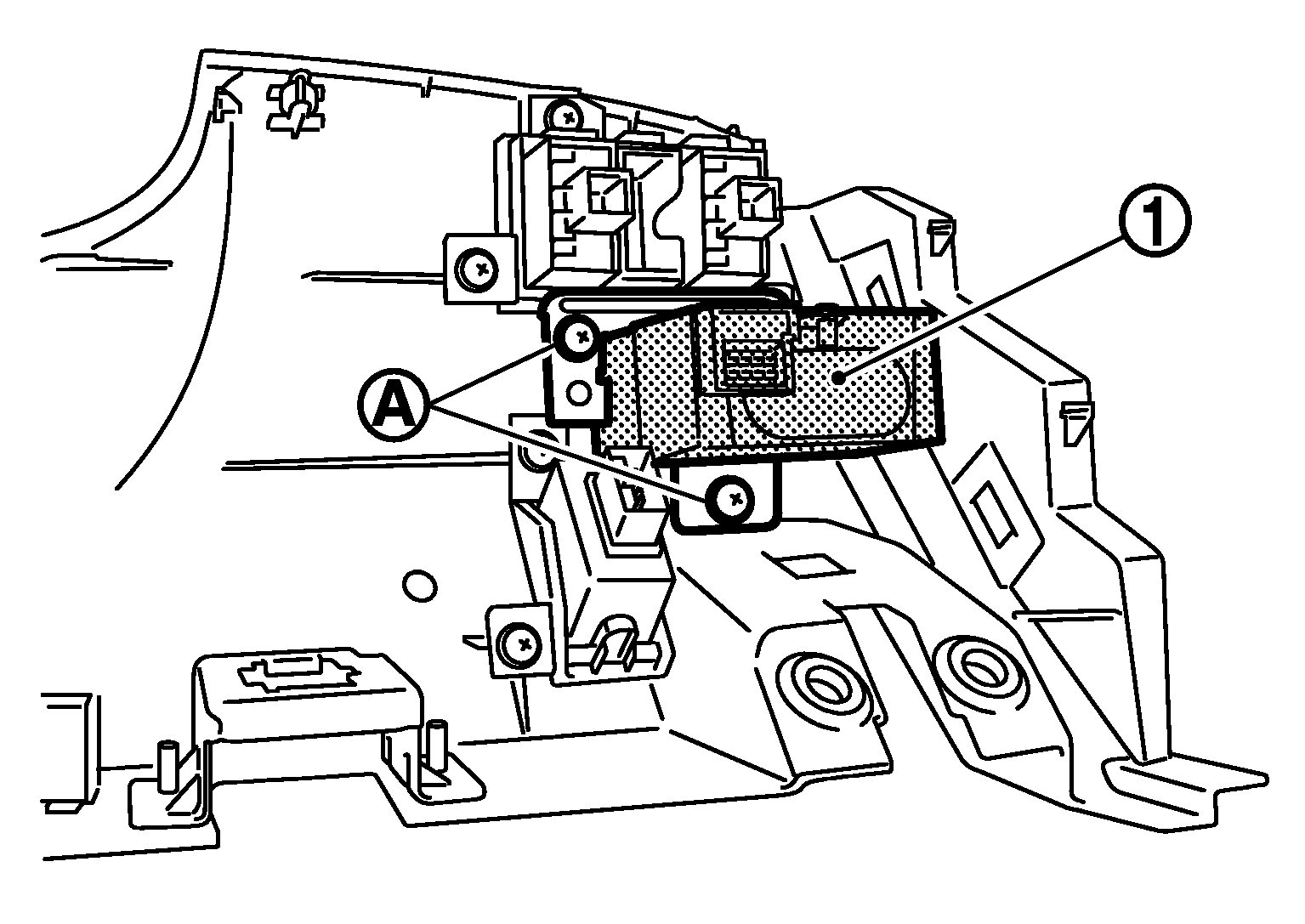

    Fig 1: Identifying Key Slot Mounting Screw
    G05728372Courtesy of NISSAN MOTOR CO., U.S.A.
