Basic Operations

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

Switches And Indicator/Warning Lamps

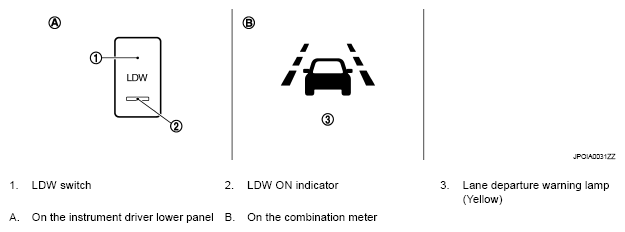

Fig 1: Identifying Switches & Indicator/Warning Lamps

Courtesy of NISSAN MOTOR CO., U.S.A.

Bulb Check Action and Fail-safe Indication

BULB CHECK ACTION AND FAIL-SAFE INDICATION

Vehicle condition/Driver's operation	LDW ON indicator	Indication on the combination meter
Ignition switch: OFF => ON	2 sec. ON	Courtesy of NISSAN MOTOR CO., U.S.A.
When DTC is detected (Except "C1B01" and "C1B03")	ON	Courtesy of NISSAN MOTOR CO., U.S.A.
Camera aiming is not completed ("C1B01" is detected)	ON	Courtesy of NISSAN MOTOR CO., U.S.A.
Temporary disabled status at high temperature ("C1B03" is detected)	Blink	OFF
