2WD Models

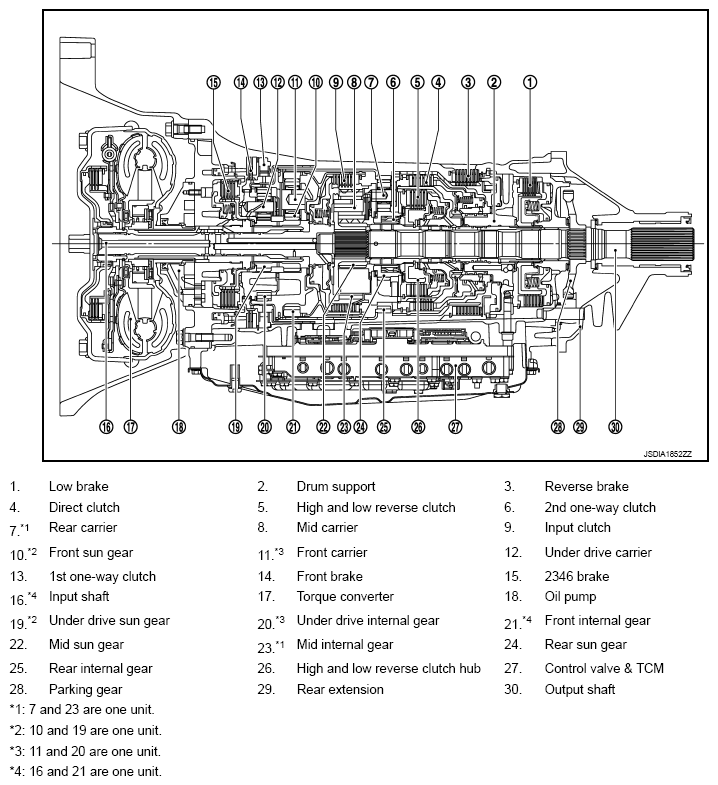

Fig 1: Shift Mechanism Cross-Sectional View (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
