Sectional View

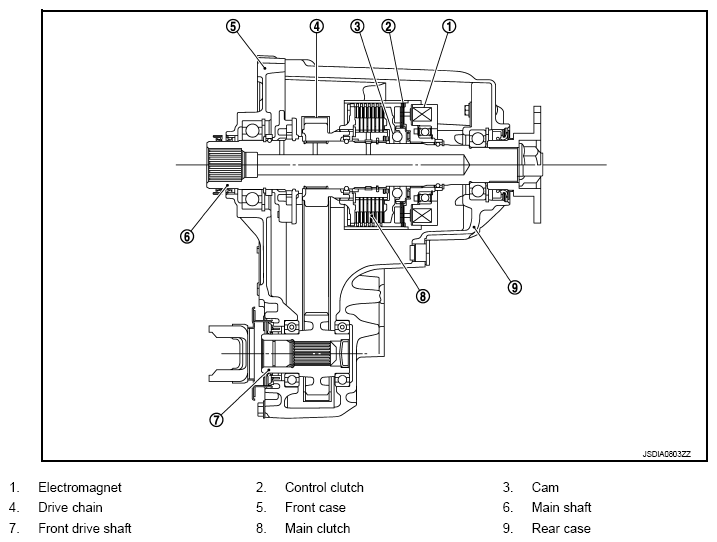

Fig 1: Sectional View Of Transfer Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
