Exploded View

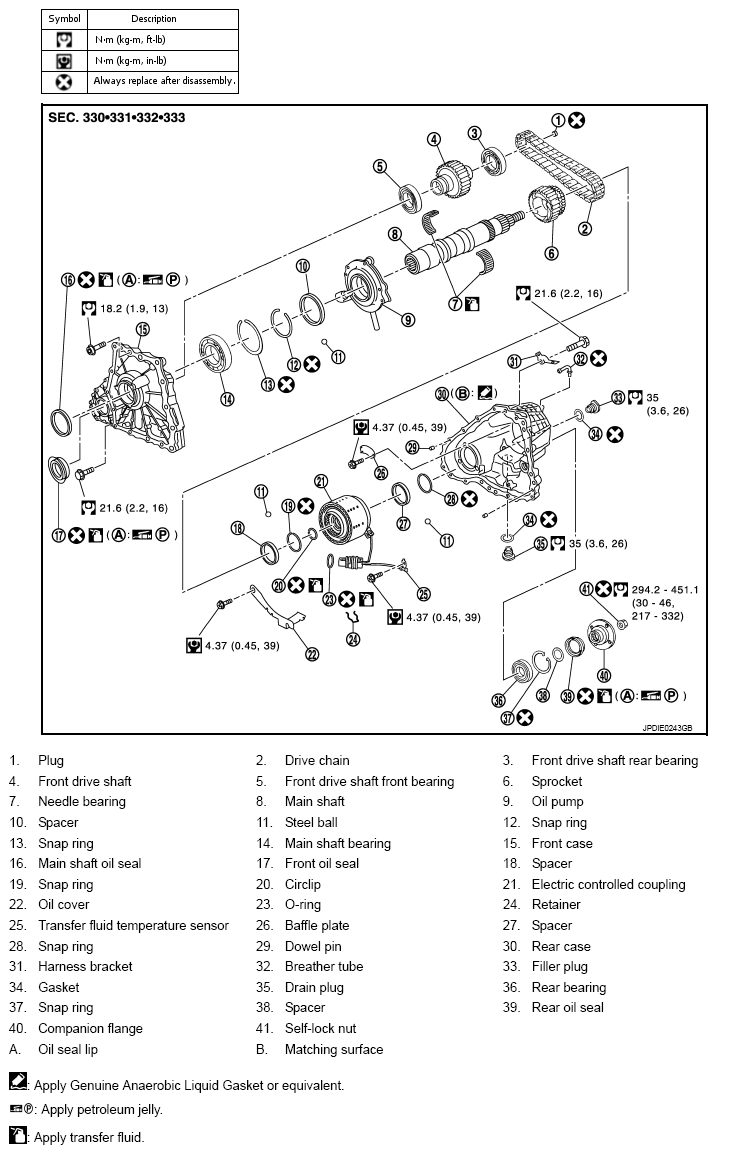

Fig 1: Exploded View Of Front And Rear Case With Torque Specifications
G08992880Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
