Front Drive Shaft And Drive Chain: Disassembly

  1. Separate front case and rear case. Refer to "DISASSEMBLY ".
  2. Remove drive chain and front drive shaft.
    CAUTION: Never use tools. Always remove by hand.
  3. Remove front drive shaft front bearing with the drift (A) and replacer (B).

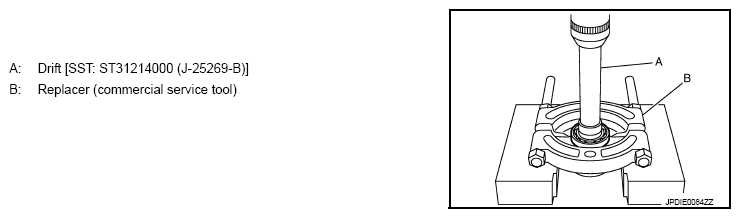

    Fig 1: Removing Front Drive Shaft Front Bearing Using SST
    G08992929Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove front drive shaft rear bearing with the drift (A) and replacer (B).

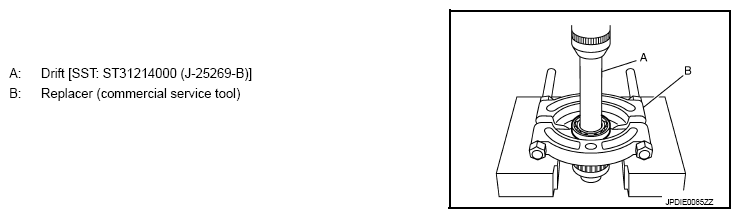

    Fig 2: Removing Front Drive Shaft Rear Bearing Using SST
    G08992930Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove plug from front drive shaft.
  6. Perform inspection after disassembly. Refer to "INSPECTION ".
