MEMORY FUNCTION: Component Parts Location

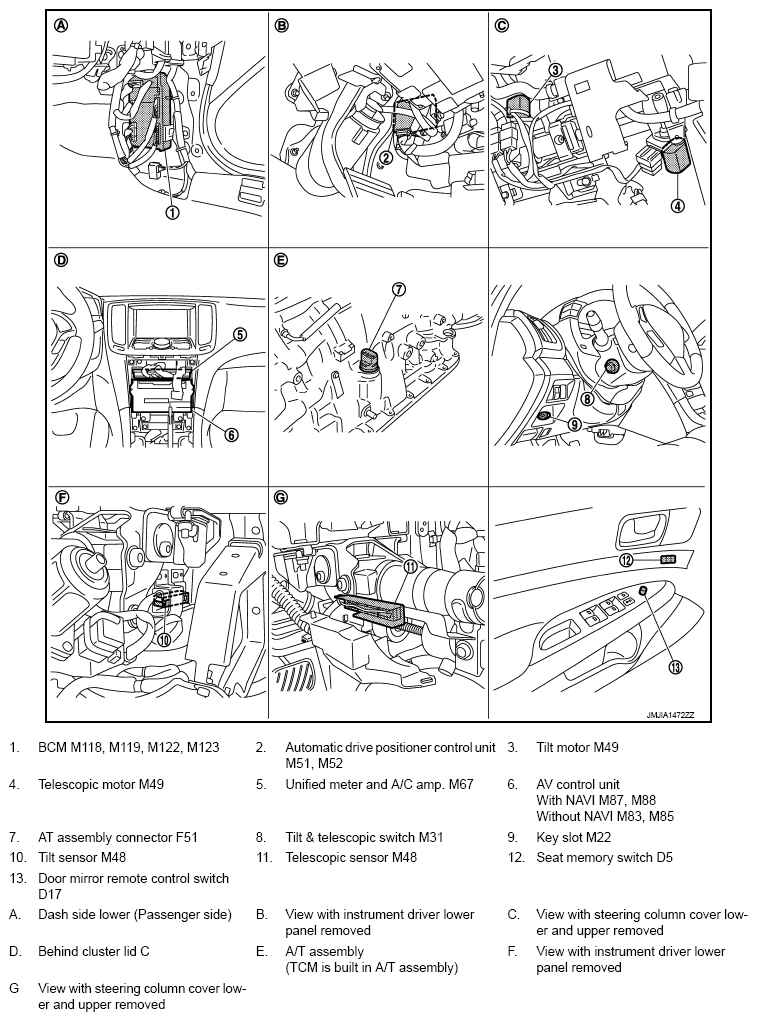

Fig 1: Memory Function Component Parts Location (1 Of 2)
G08996261Courtesy of NISSAN NORTH AMERICA, INC.

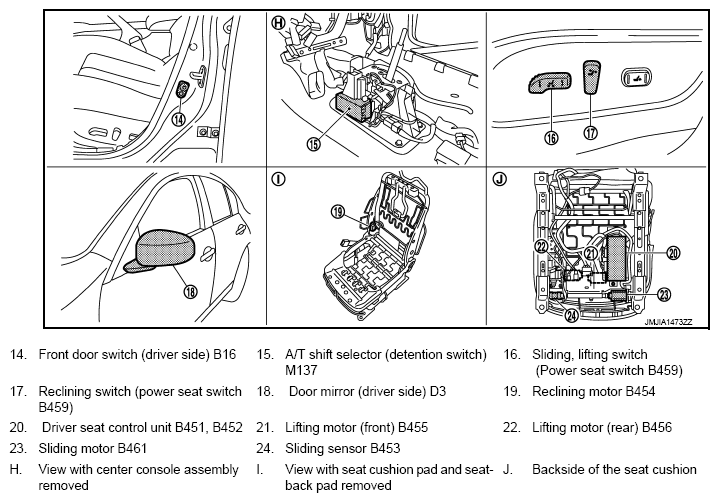

Fig 2: Memory Function Component Parts Location (2 Of 2)
G08996262Courtesy of NISSAN NORTH AMERICA, INC.
