Exploded View

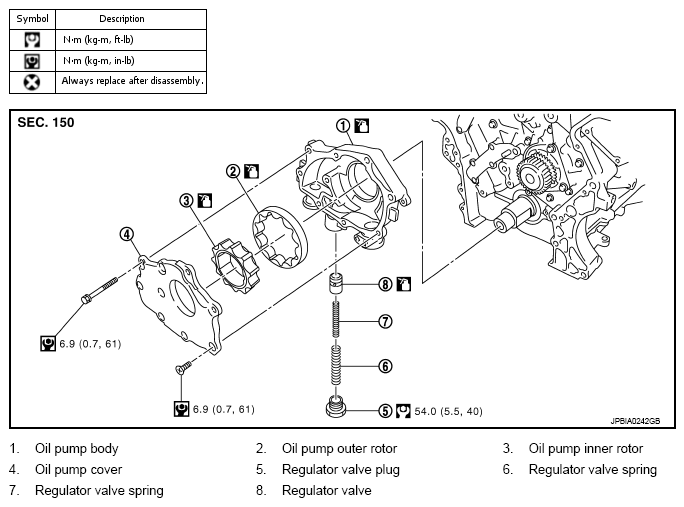

Fig 1: Exploded View Of Oil Pump With Torque Specifications
G09000456Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
