MEMORY FUNCTION: Component Parts Location

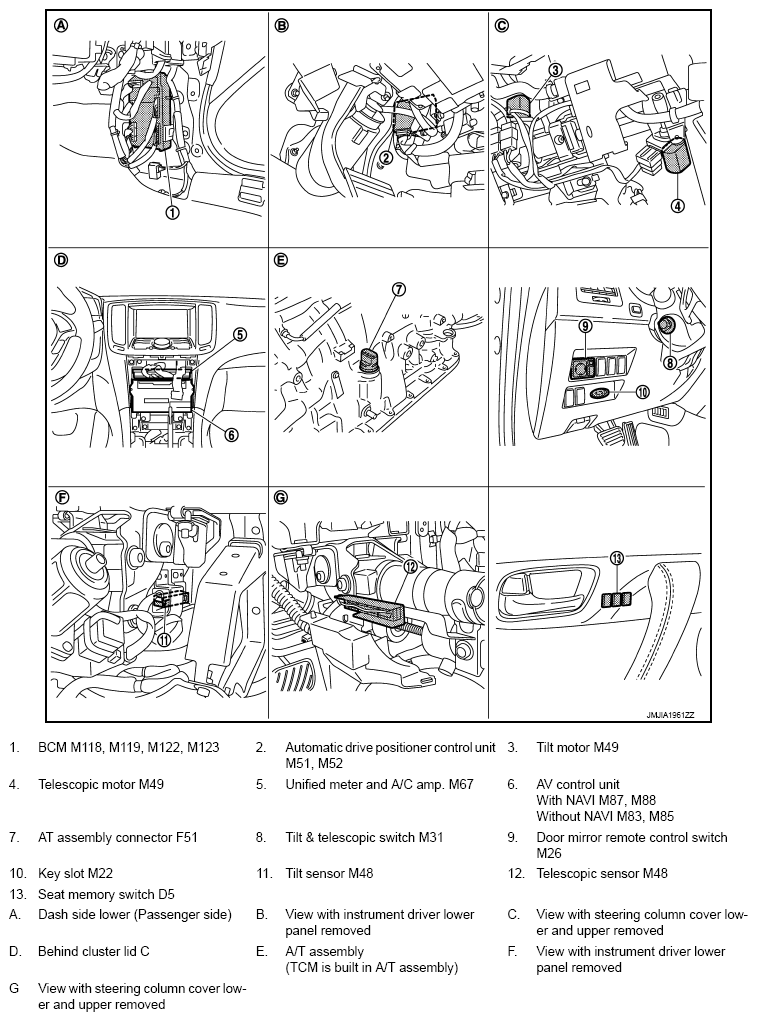

Fig 1: Memory Function System Components Location (1 Of 2)
G09006012Courtesy of NISSAN NORTH AMERICA, INC.

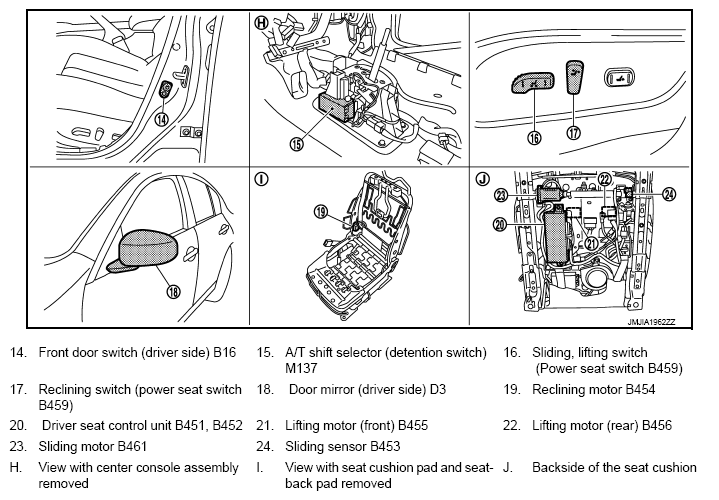

Fig 2: Memory Function System Components Location (2 Of 2)
G09006004Courtesy of NISSAN NORTH AMERICA, INC.
