Removal and Installation: Removal

Disconnect the battery cable from the negative terminal.
Remove the cowl top cover (RH). Refer to "EXPLODED VIEW ".
Pull up the IPDM E/R assembly while pressing the pawls (A) on the back of the IPDM E/R cover B (1).

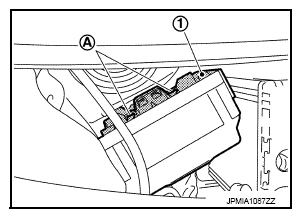

Fig 1: Locating IPDM E/R Cover B And Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the IPDM E/R cover A (1) while pressing the pawls (A) at the lower end of the IPDM E/R cover A.

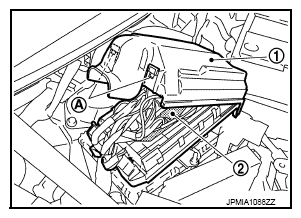

Fig 2: Locating IPDM E/R Cover A, B And Pawls
Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector and remove the IPDM E/R (2).
Remove the IPDM E/R cover B.
