Exploded View

Refer to "SYMBOLS " for symbols in the figure.

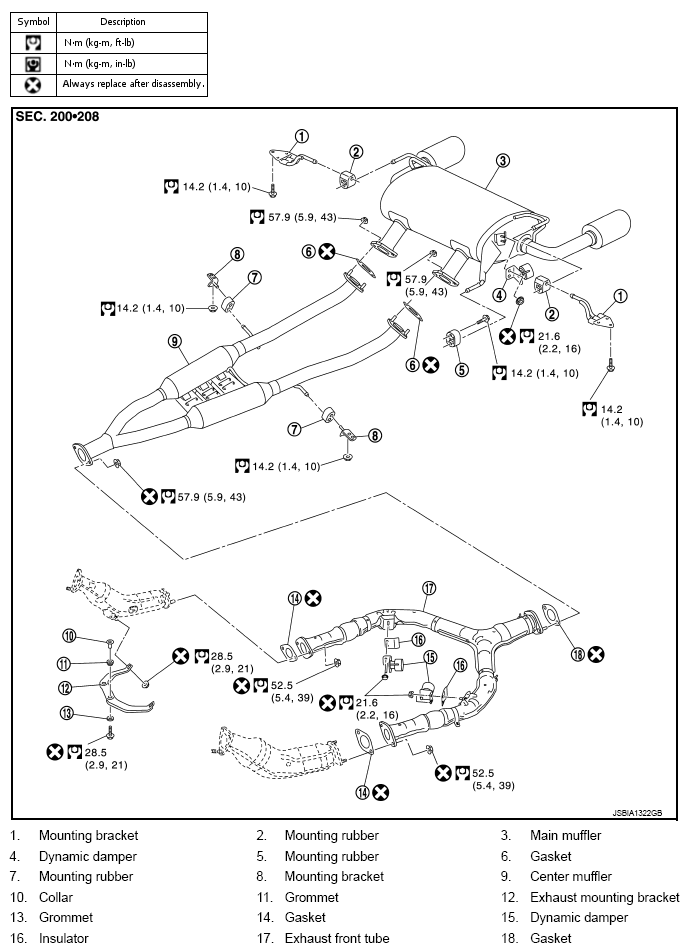

Fig 1: Exploded View Of Exhaust System (VQ37VHR) With Torque Specifications
G09001665Courtesy of NISSAN NORTH AMERICA, INC.
