IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING
    1. Attach timing light to loop wire as shown below.

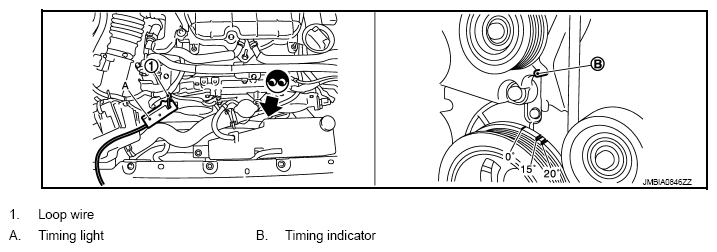

      Fig 1: Attaching Timing Light And Checking Ignition Timing Using Timing Indicator
      G09000562Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      : INSPECTION END
