Component Parts Location

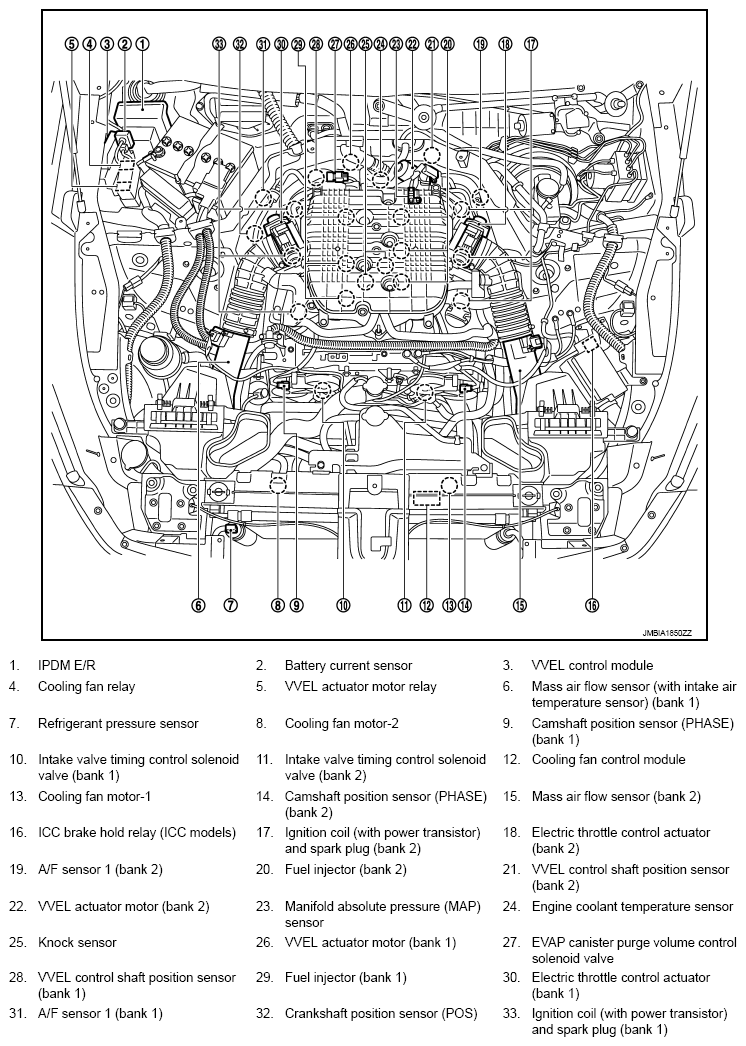

Fig 1: Air Conditioning Cut Control System Components Location (1 Of 21)

G09000643

Courtesy of NISSAN NORTH AMERICA, INC.

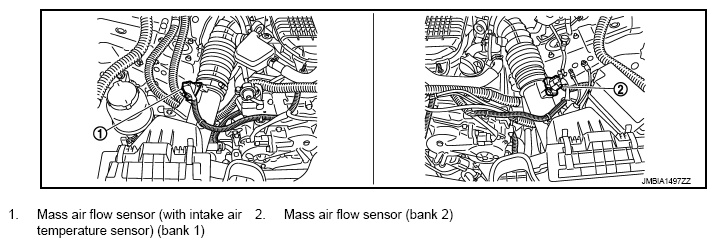

Fig 2: Air Conditioning Cut Control System Components Location (2 Of 21)

G09000644

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Air Conditioning Cut Control System Components Location (3 Of 21)

G09000645

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Air Conditioning Cut Control System Components Location (4 Of 21)

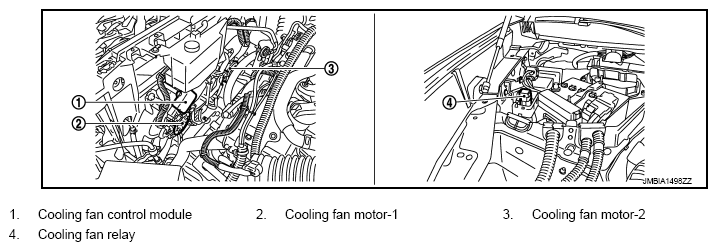

G09000646

Courtesy of NISSAN NORTH AMERICA, INC.

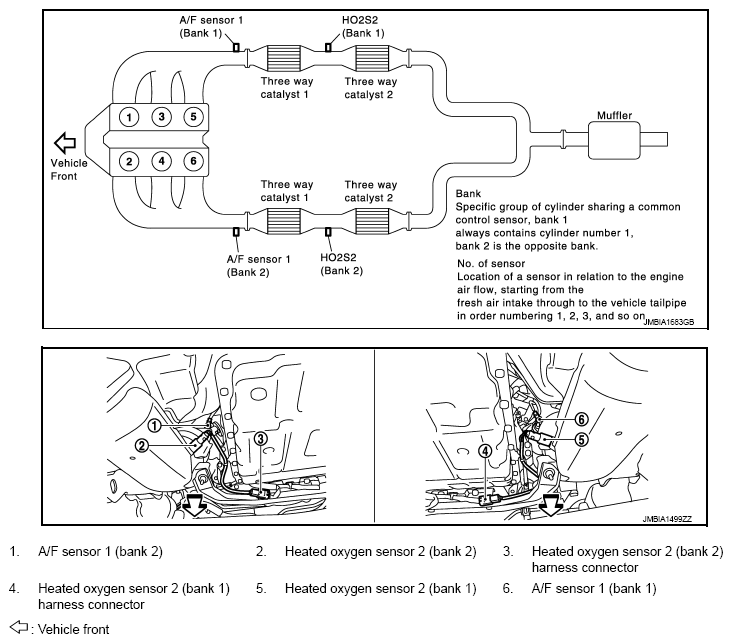

Fig 5: Air Conditioning Cut Control System Components Location (5 Of 21)

G09000647

Courtesy of NISSAN NORTH AMERICA, INC.

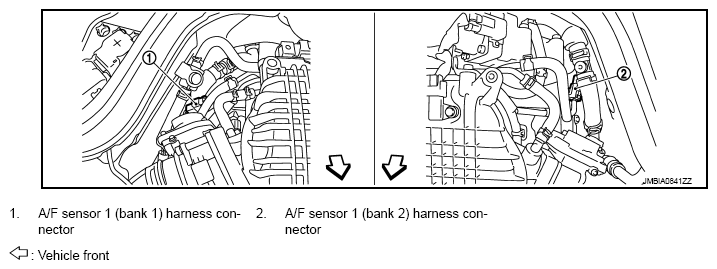

Fig 6: Air Conditioning Cut Control System Components Location (6 Of 21)

G09000648

Courtesy of NISSAN NORTH AMERICA, INC.

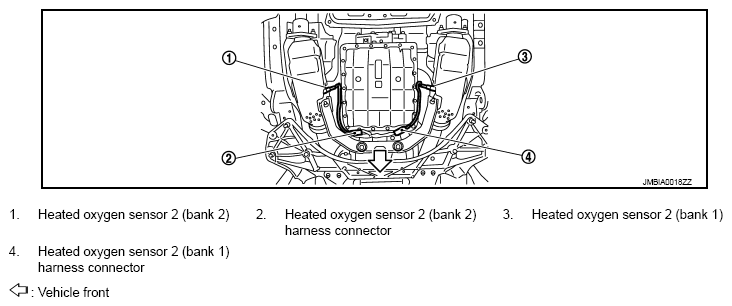

Fig 7: Air Conditioning Cut Control System Components Location (7 Of 21)

G09000649

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Air Conditioning Cut Control System Components Location (8 Of 21)

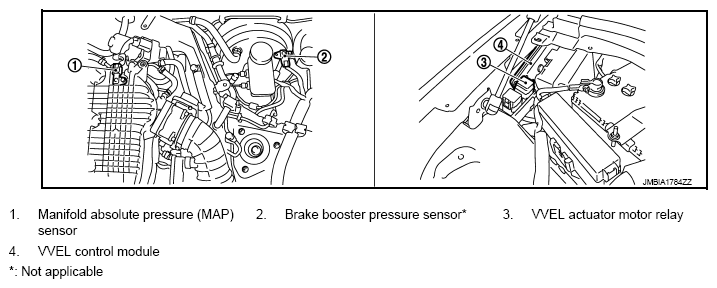

G09000650

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Air Conditioning Cut Control System Components Location (9 Of 21)

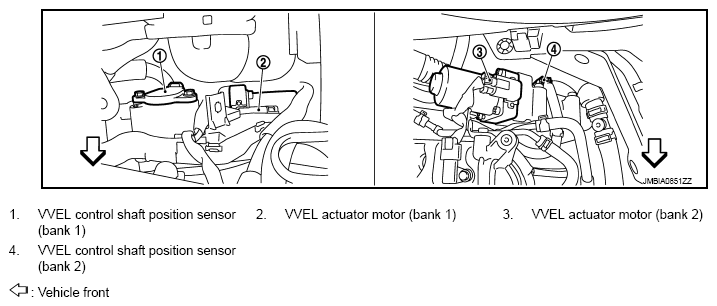

G09000651

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Air Conditioning Cut Control System Components Location (10 Of 21)

G09000652

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Air Conditioning Cut Control System Components Location (11 Of 21)

G09000653

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Air Conditioning Cut Control System Components Location (12 Of 21)

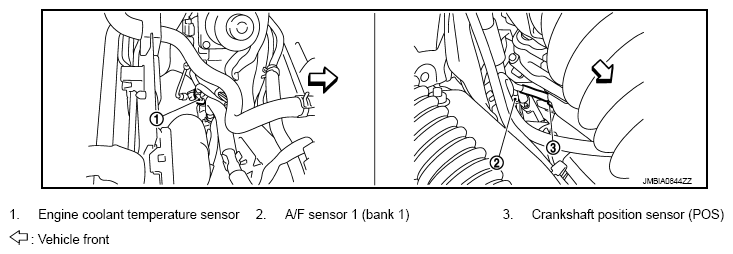

G09000654

Courtesy of NISSAN NORTH AMERICA, INC.

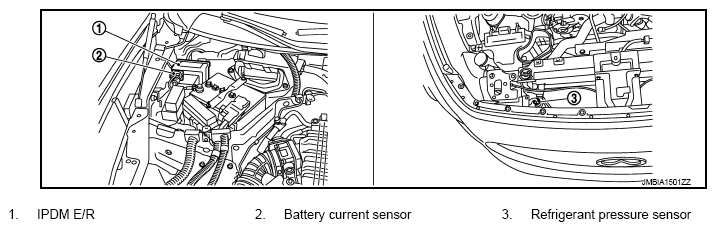

Fig 13: Air Conditioning Cut Control System Components Location (13 Of 21)

G09000655

Courtesy of NISSAN NORTH AMERICA, INC.

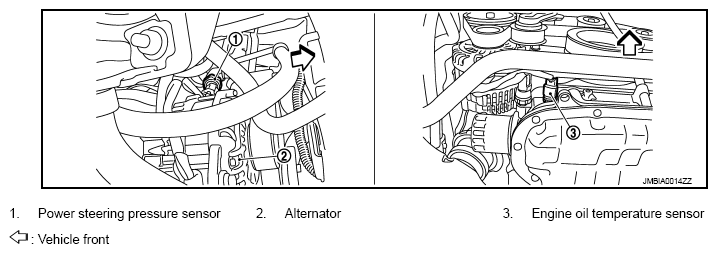

Fig 14: Air Conditioning Cut Control System Components Location (14 Of 21)

G09000656

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Air Conditioning Cut Control System Components Location (15 Of 21)

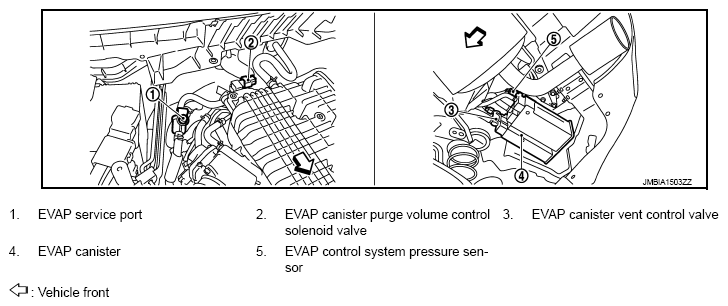

G09000657

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Air Conditioning Cut Control System Components Location (16 Of 21)

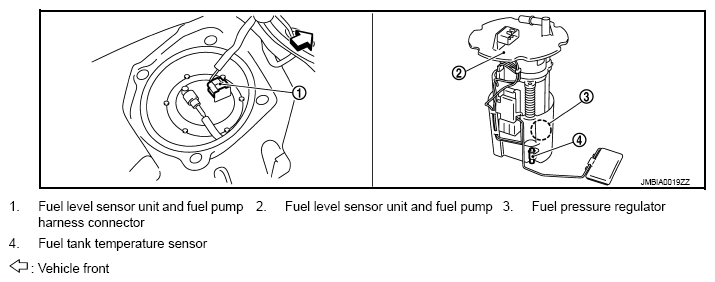

G09000658

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Air Conditioning Cut Control System Components Location (17 Of 21)

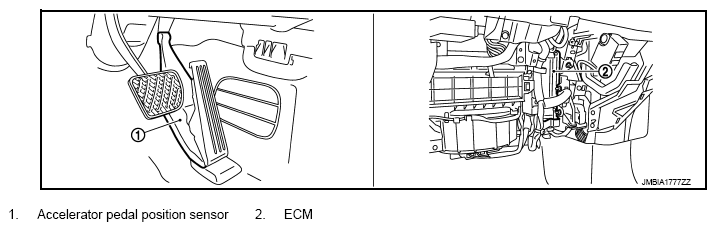

G09000659

Courtesy of NISSAN NORTH AMERICA, INC.

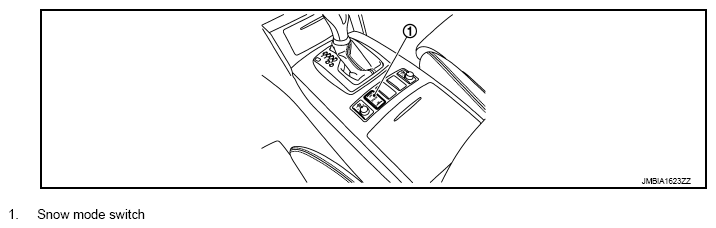

Fig 18: Air Conditioning Cut Control System Components Location (18 Of 21)

G09000660

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Air Conditioning Cut Control System Components Location (19 Of 21)

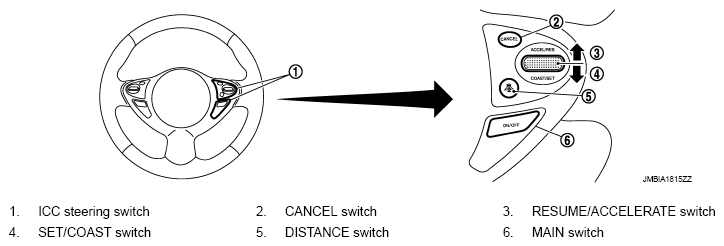

G09000661

Courtesy of NISSAN NORTH AMERICA, INC.

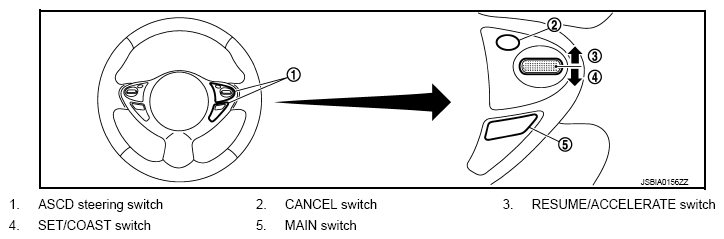

Fig 20: Air Conditioning Cut Control System Components Location (20 Of 21)

G09000662

Courtesy of NISSAN NORTH AMERICA, INC.

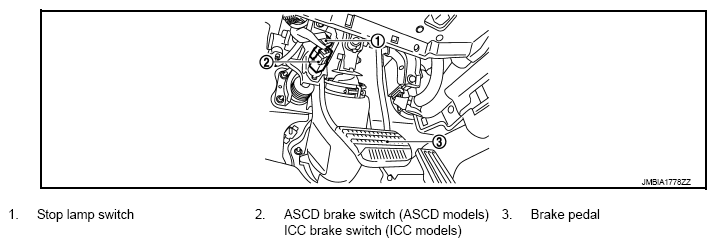

Fig 21: Air Conditioning Cut Control System Components Location (21 Of 21)

G09000663

Courtesy of NISSAN NORTH AMERICA, INC.
