Diagnosis Procedure

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK GROUND CONNECTION
    1. Turn ignition switch OFF.
    2. Check ground connection M95. Refer to Ground Inspection in "CIRCUIT INSPECTION ".

      Is the inspection result normal?

      YES: GO TO 2.

      NO: Repair or replace ground connection.

  2. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I

    Check the voltage between ECM harness connector terminals as per the following.

    DTC ECM Condition Voltage (V)
    + -
    Connector Terminal Connector Terminal
    P1233 F110 1 M160 128 Ignition switch OFF Approx. 0
    Ignition switch ON Battery voltage
    P2101 F111 49 Ignition switch OFF Approx. 0
    Ignition switch ON Battery voltage

    Is the inspection result normal?

    YES: GO TO  9.

    NO: GO TO 3.

  3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Disconnect IPDM E/R harness connector E7.
    4. Check the continuity between IPDM E/R harness connector and ECM harness connector.
      IPDM E/R ECM Continuity
      Connector Terminal Connector Terminal
      E7 70 F110 19 Existed
    5. Also check harness for short to ground and short to power.

      Is the inspection result normal?

      YES: GO TO  5.

      NO: GO TO 4.

  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E10, F10
    • Harness for open or short between ECM and IPDM E/R

      : Repair open circuit, short to ground or short to power in harness or connectors.

  5. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
    1. Check the continuity between IPDM E/R harness connector and ECM harness connector.
      DTC IPDM E/R ECM Continuity
      Connector Terminal Connector Terminal
      P1233 E7 54 F110 1 Existed
      P2101 F111 49
    2. Also check harness for short to ground and short to power.

      Is the inspection result normal?

      YES: GO TO  7.

      NO: GO TO 6.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E10, F10
    • Harness for open or short between ECM and IPDM E/R

      : Repair open circuit, short to ground or short to power in harness or connectors.

  7. CHECK FUSE
    1. Disconnect 15 A fuse (No. 51) from IPDM E/R.
    2. Check if 15 A fuse is blown.

      Is the inspection result normal?

      YES: GO TO 8.

      NO: Replace 15 A fuse.

  8. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    Is the inspection result normal?

    YES: Replace IPDM E/R. Refer to "REMOVAL AND INSTALLATION ".

    NO: Repair or replace harness or connectors.

  9. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
    1. Turn ignition switch OFF.
    2. Disconnect electric throttle control actuator harness connector.
    3. Disconnect ECM harness connector.
    4. Check the continuity between electric throttle control actuator harness connector and ECM harness connector.
      DTC Electric throttle control actuator ECM Continuity
      Bank Connector Terminal Connector Terminal
      P1233 2 F64 5 F110 2 Not existed
      5 Existed
      6 2 Existed
      5 Not existed
      P2101 1 F66 5 F111 50 Not existed
      53 Existed
      6 50 Existed
      53 Not existed
    5. Also check harness for short to ground and short to power.

      Is the inspection result normal?

      YES: GO TO 10.

      NO: Repair or replace malfunctioning part.

  10. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
    1. Remove the intake air duct. Refer to "EXPLODED VIEW ".
    2. Check that no foreign matter is caught between the throttle valve (1) and the housing.

      Is the inspection result normal?

      YES: GO TO 11.

      NO: Remove the foreign matter and clean the electric throttle control actuator inside, and then perform throttle valve closed position learning. Refer to "THROTTLE VALVE CLOSED POSITION LEARNING: SPECIAL REPAIR REQUIREMENT ".

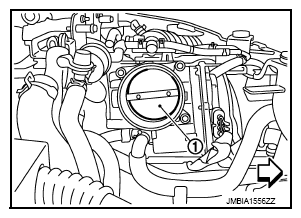

      Fig 1: Identifying Throttle Valve
      G09001504Courtesy of NISSAN NORTH AMERICA, INC.
  11. CHECK THROTTLE CONTROL MOTOR

    Refer to "COMPONENT INSPECTION ".

    Is the inspection result normal?

    YES: GO TO 12.

    NO: GO TO  13.

  12. CHECK INTERMITTENT INCIDENT

    Refer to "INTERMITTENT INCIDENT ".

    Is the inspection result normal?

    YES: GO TO 13.

    NO: Repair or replace harness or connectors.

  13. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace malfunction electric throttle control actuator.
    2. Perform "SPECIAL REPAIR REQUIREMENT ".

      : INSPECTION END
