Exploded View: Disassembly

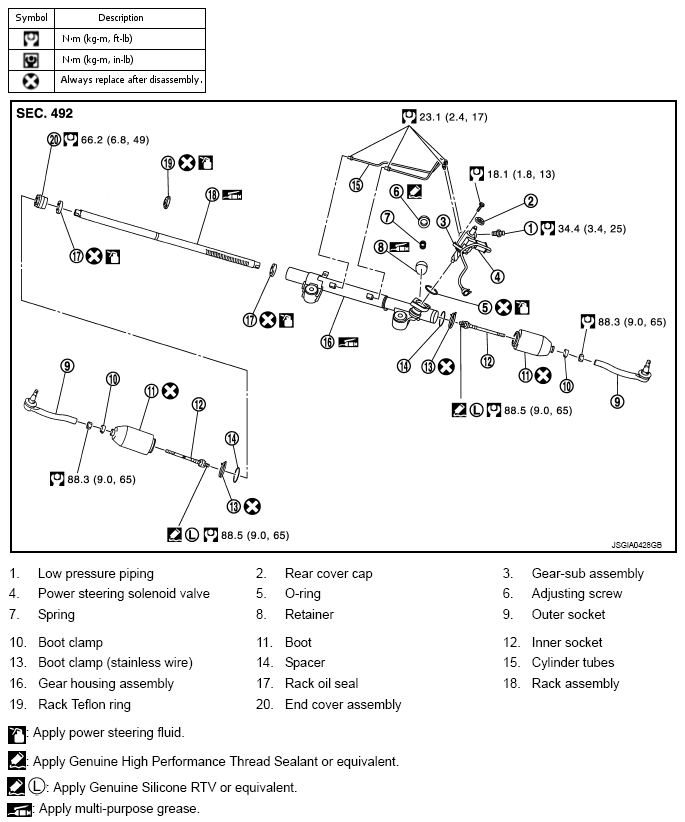

Fig 1: Disassembled View Of Steering Gear And Linkage
G09004275Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described on the above.
