Exploded View

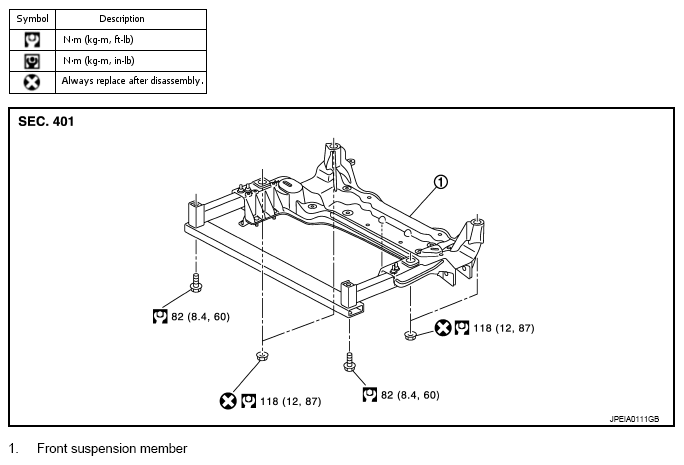

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications
G09003763Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
