Cross-Sectional View

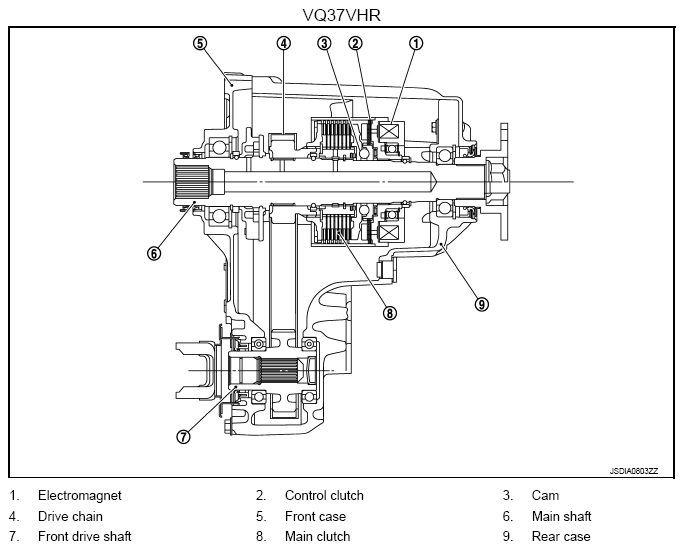

Fig 1: Cross-Sectional View Of Transfer Case (VQ37VHR)
Courtesy of NISSAN NORTH AMERICA, INC.

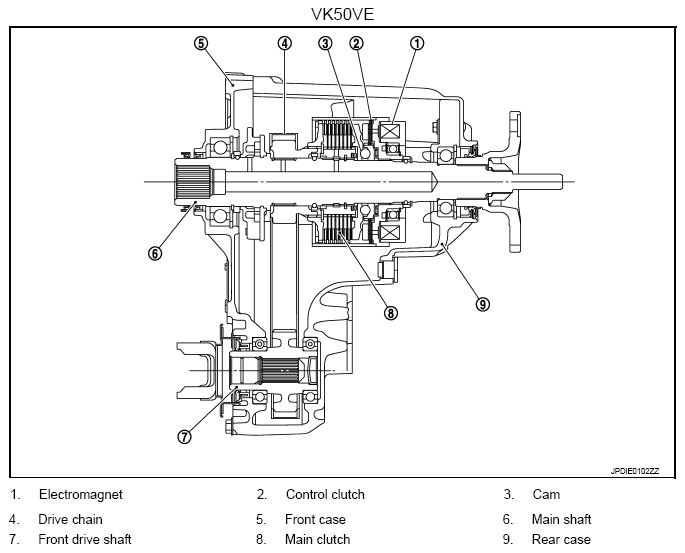

Fig 2: Cross-Sectional View Of Transfer Case (VK50VE)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
