VK50VE: Exploded View

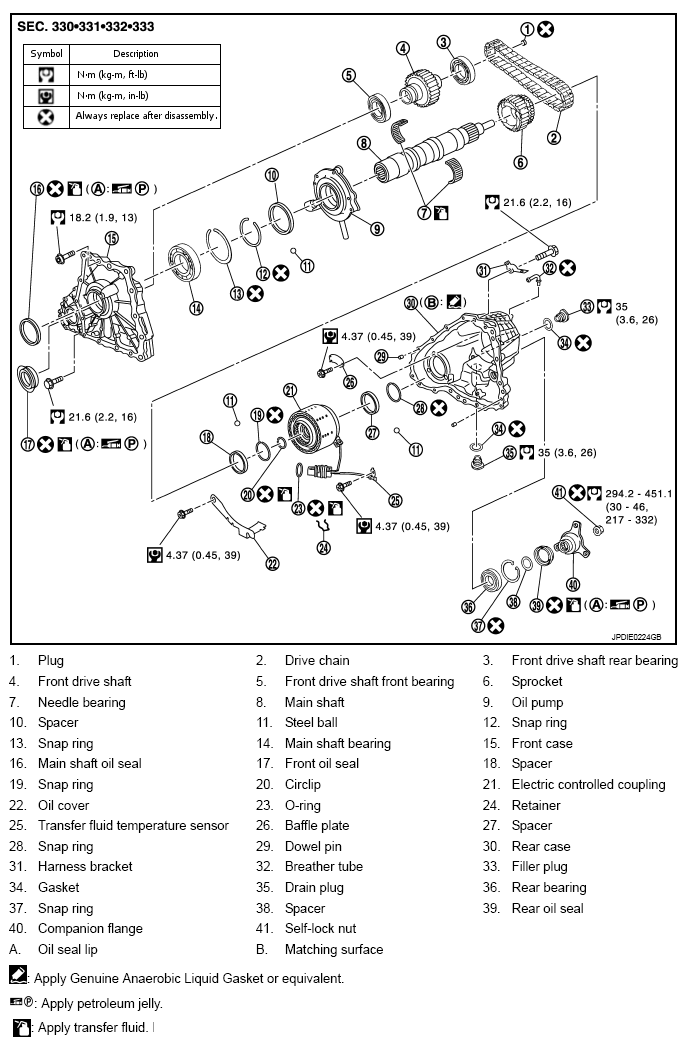

Fig 1: Exploded View Of Main Shaft (VK50VE)
G09002616Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols not described above.
