VK50VE: Exploded View

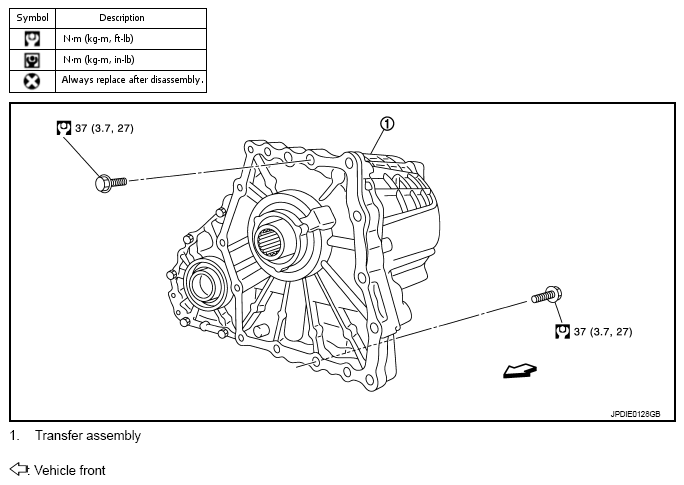

Fig 1: Exploded View Of Transfer Assembly (VK50VE) With Torque Specifications
G09002576Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
