Heater & Air Conditioning Control System (Automatic Air Conditioning)
>>
System Description
>>
Intake Door Control System
>>
With ACCS
>>
WITH ACCS: System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
WITH ACCS: System Diagram

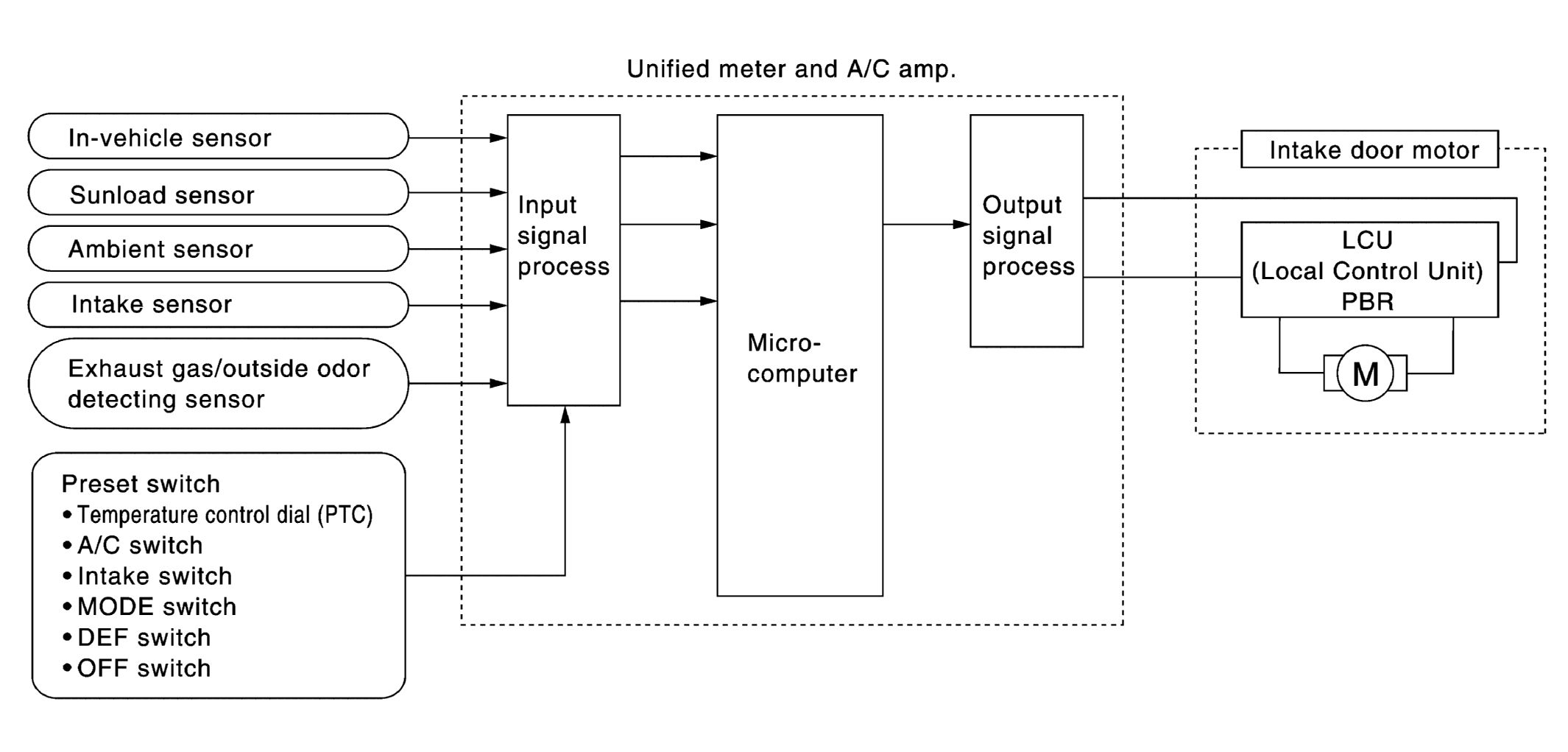

Fig 1: Intake Door Control System Diagram (With ACCS)
Courtesy of NISSAN NORTH AMERICA, INC.
