WITH ELECTRIC MOTOR: Exploded View

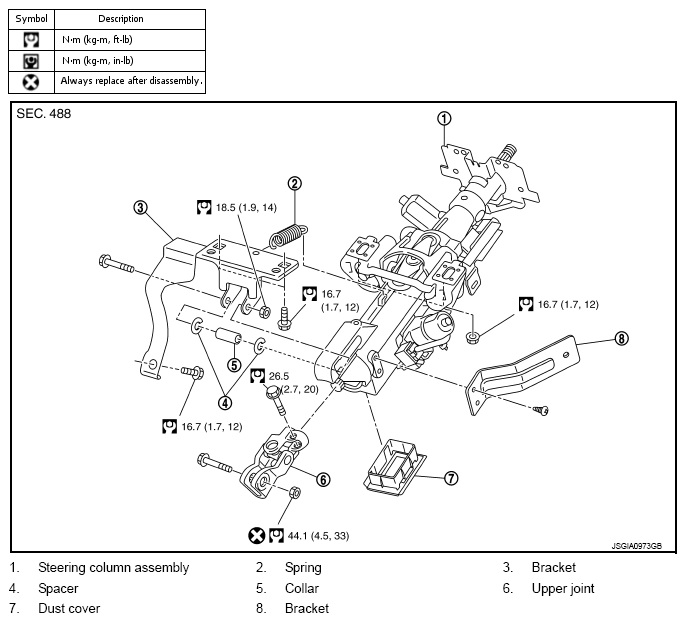

Fig 1: Exploded View Of Steering Column (With Electric Motor)
G09004261Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
