2WD Models

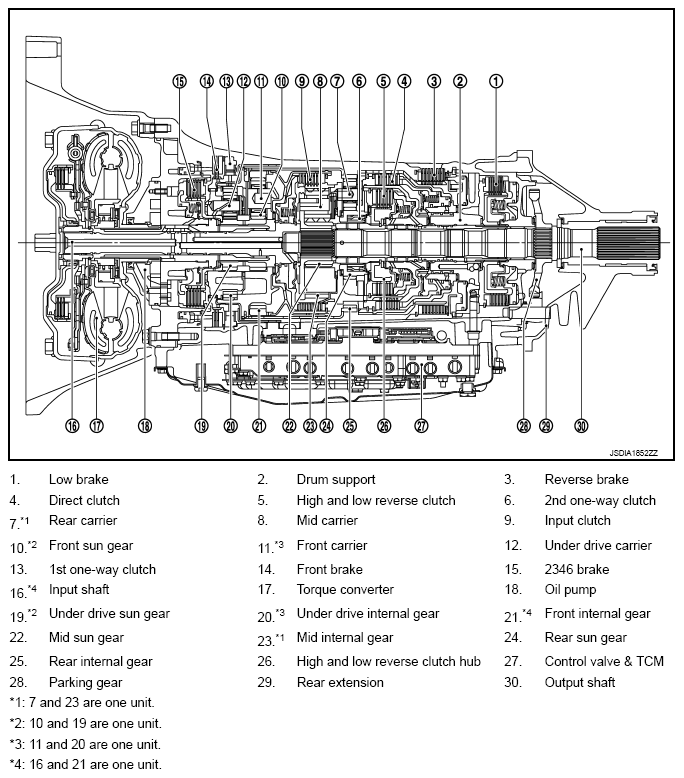

Fig 1: Cross-Sectional View Of Shift Mechanism (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
