Fan Speed Control Specification

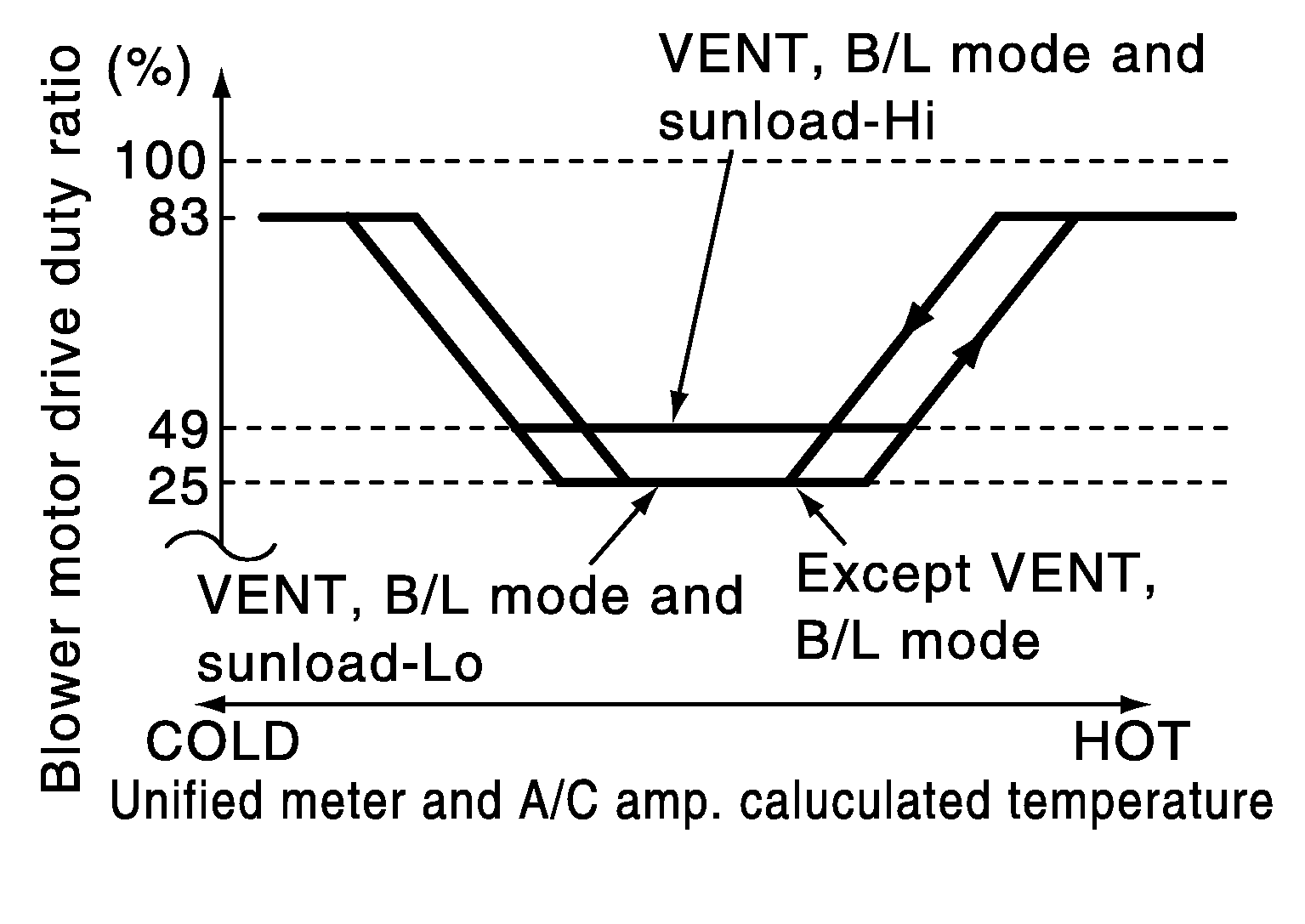

Fig 1: Unified Meter And A/C Amp Calculated Temperature Versus Blower Motor Drive Duty Ratio Graph
G05981944Courtesy of NISSAN NORTH AMERICA, INC.
