Exploded View

NOTE: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM): DESCRIPTION ".

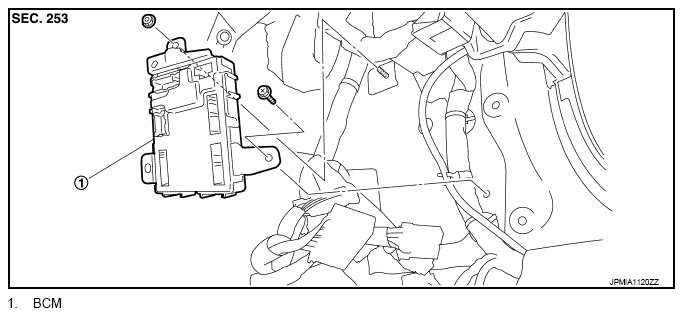

Fig 1: Exploded View Of Body Control Module
G09007302Courtesy of NISSAN NORTH AMERICA, INC.
