Component Parts Location

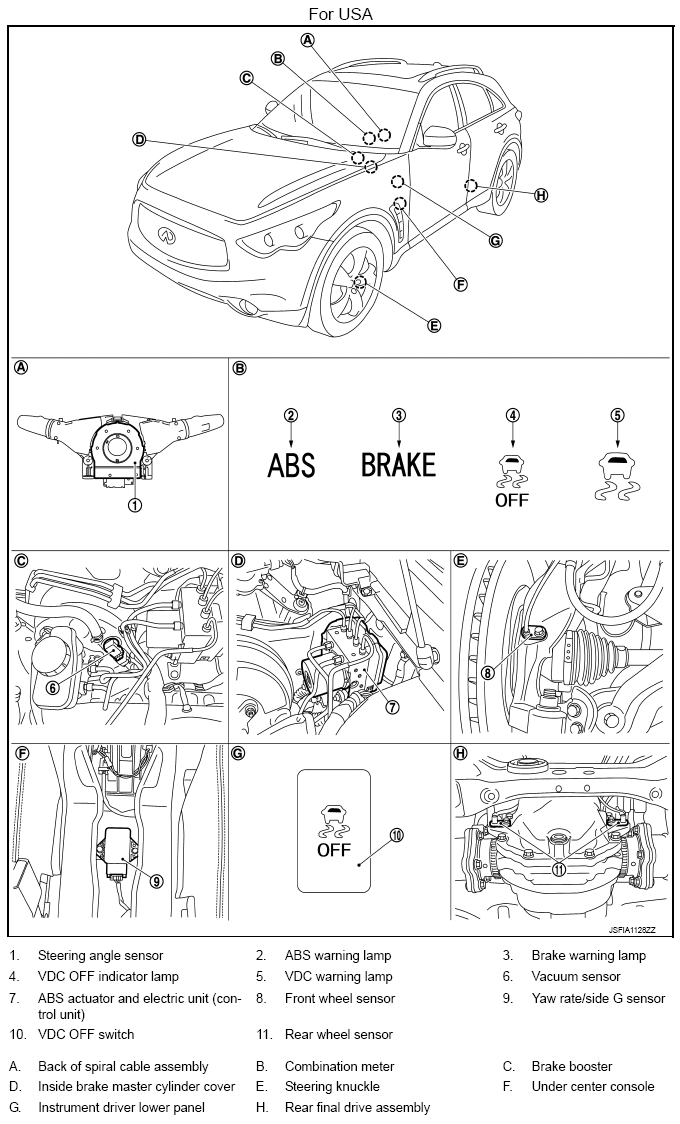

Fig 1: TCS Components Location (For USA)
G09003989Courtesy of NISSAN NORTH AMERICA, INC.

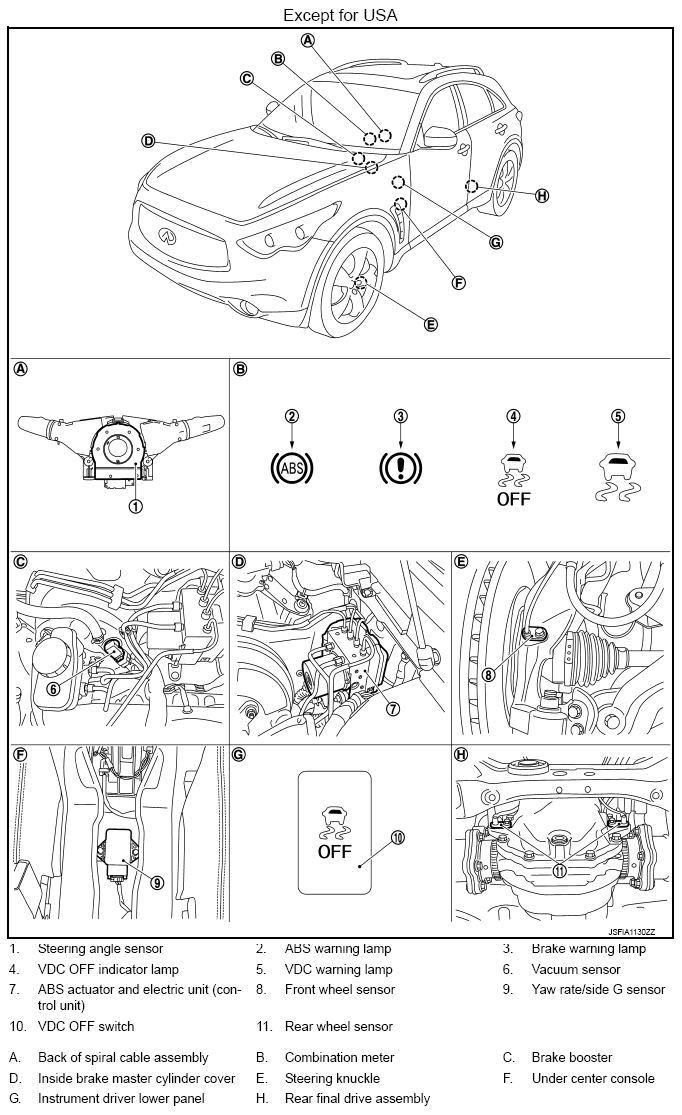

Fig 2: TCS Components Location (Except For USA)
G09003990Courtesy of NISSAN NORTH AMERICA, INC.
