Exploded View

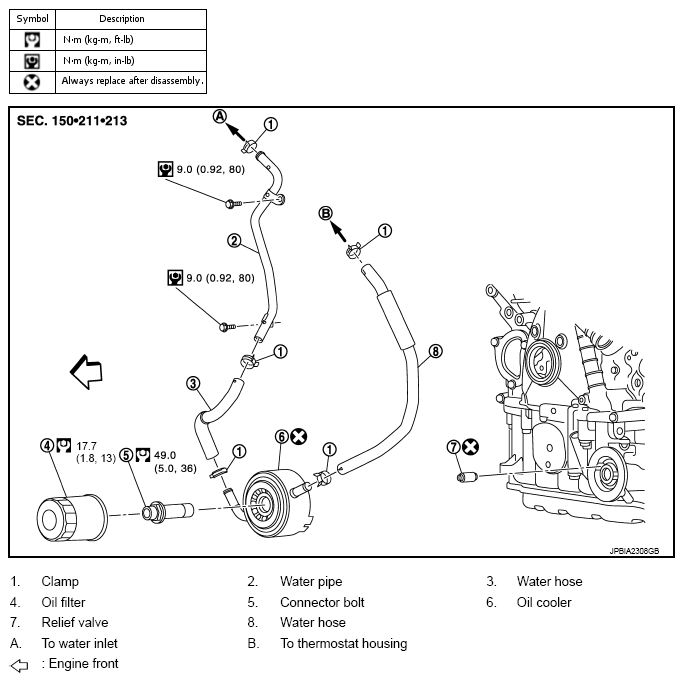

Fig 1: Exploded View Of Oil Cooler
G09000475Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
