EXHAUST VALVE TIMING CONTROL POSITION SENSOR-I
1. Turn ignition switch OFF.
2. Disconnect exhaust valve timing control position sensor harness connector.
3. Loosen the fixing bolt of the sensor.
4. Remove the sensor. Refer to "EXPLODED VIEW ".
5. Visually check the sensor for chipping.
  Is the inspection result normal?

  YES: GO TO 2.

  NO: Replace malfunctioning exhaust valve timing control position sensor. Refer to "EXPLODED VIEW ".

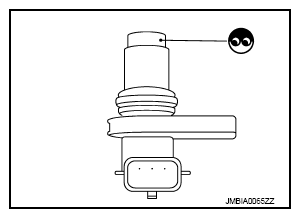

  Fig 1: Inspecting Exhaust Valve Timing Control Position Sensor-I
  Courtesy of NISSAN NORTH AMERICA, INC.

EXHAUST VALVE TIMING CONTROL POSITION SENSOR-II

Check resistance exhaust valve timing control position sensor terminals as shown below.

Terminals	Resistance
1 (+) - 2 (-)	Except 0 or ∞ Ω [at 25°C (77°F)]
1 (+) - 3 (-)
2 (+) - 3 (-)

Is the inspection result normal?

YES: INSPECTION END

NO: Replace malfunctioning exhaust valve timing control position sensor. Refer to "EXPLODED VIEW ".
