Component Inspection

CHECK BATTERY CURRENT SENSOR

Turn ignition switch OFF.
Reconnect harness connectors disconnected.
Disconnect battery negative cable (1).
Install jumper cable (A) between battery negative terminal and body ground.

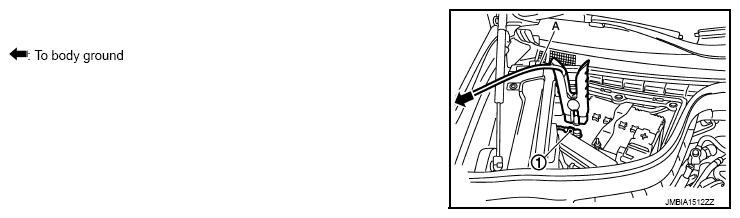

Fig 1: Installing Jumper Cable Between Battery Negative Terminal And Body Ground
Courtesy of NISSAN NORTH AMERICA, INC.
Turn ignition switch ON.

Check the voltage between ECM harness connector terminals under the following conditions.

ECM			Voltage (V)
Connector	+	-
Connector	Terminal	Terminal
F111	76 (Battery current sensor signal)	70	Approx. 2.5

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to "HOW TO HANDLE BATTERY ".

Is the inspection result normal?

YES: INSPECTION END

NO: Replace battery negative cable assembly.
