EXCEPT FOR MEXICO: Diagnosis Procedure

INSPECTION START
Check whether the following symptoms are present.
1. Fuel odor from EVAP canister is strong.
2. Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
  Which symptom is present?

  A: GO TO 2.

  B: GO TO 7.
CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. Refer to "VK50VE: EXPLODED VIEW ".
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
  The weight should be less than 2.1 kg (4.6 lb).

  Is the inspection result normal?

  YES: GO TO 3.

  NO: GO TO 4.
CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Check if water will drain from EVAP canister (1).
- EVAP canister vent control valve (2)
  Does water drain from the EVAP canister?

  YES: GO TO 4.

  NO: GO TO 6.

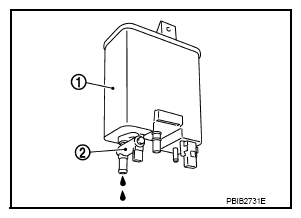

  Fig 1: Checking EVAP Canister For Water Saturation
  Courtesy of NISSAN NORTH AMERICA, INC.
REPLACE EVAP CANISTER
Replace EVAP canister with a new one. Refer to "VK50VE: REMOVAL AND INSTALLATION ".

: GO TO 5.
DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

: Repair or replace EVAP hose.
CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to "EXCEPT FOR MEXICO: COMPONENT INSPECTION ".

Is the inspection result normal?

YES: INSPECTION END

NO: Replace refueling EVAP vapor cut valve with fuel tank.
CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. Refer to "VK50VE: EXPLODED VIEW ".
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
  The weight should be less than 2.1 kg (4.6 lb).

  Is the inspection result normal?

  YES: GO TO 8.

  NO: GO TO 9.
CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Check if water will drain from EVAP canister (1).
- EVAP canister vent control valve (2)
  Does water drain from the EVAP canister?

  YES: GO TO 9.

  NO: GO TO 11.

  Fig 2: Checking EVAP Canister For Water Saturation
  Courtesy of NISSAN NORTH AMERICA, INC.
REPLACE EVAP CANISTER
Replace EVAP canister with a new one. Refer to "VK50VE: REMOVAL AND INSTALLATION ".

: GO TO 10.
DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

: Repair or replace EVAP hose.
CHECK VENT HOSES AND VENT TUBES
Check hoses and tubes between EVAP canister and refueling control valve for clogging, kinks, looseness and improper connection.

Is the inspection result normal?

YES: GO TO 12.

NO: Repair or replace hoses and tubes.
CHECK FILLER NECK TUBE
Check recirculation line for clogging, dents and cracks.

Is the inspection result normal?

YES: GO TO 13.

NO: Replace filler neck tube.
CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to "EXCEPT FOR MEXICO: COMPONENT INSPECTION ".

Is the inspection result normal?

YES: GO TO 14.

NO: Replace refueling EVAP vapor cut valve with fuel tank.
CHECK FUEL FILLER TUBE
Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.

Is the inspection result normal?

YES: GO TO 15.

NO: Replace fuel filler tube.
CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.

Is the inspection result normal?

YES: GO TO 16.

NO: Repair or replace one-way fuel valve with fuel tank.
CHECK ONE-WAY FUEL VALVE-II
1. Check that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as per the following.
  When a stick is inserted, the valve should open, when removing stick it should close.

  Do not drop any material into the tank.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Replace fuel filler tube or replace one-way fuel valve with fuel tank.

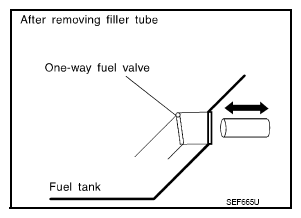

  Fig 3: One-Way Fuel Valve Operation Diagram
  Courtesy of NISSAN NORTH AMERICA, INC.
