Exploded View

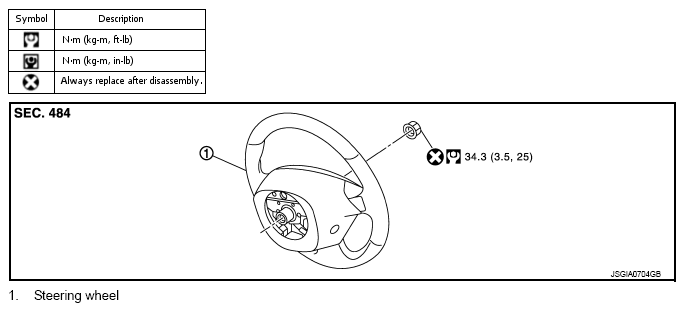

Fig 1: Exploded View Of Steering Wheel With Torque Specification
G09004251Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYMBOLS " for symbols in the figure.
