Direct Clutch: Assembly

Install direct clutch component part (drive plates, driven plates, retaining plate, and dish plate) to direct clutch drum.

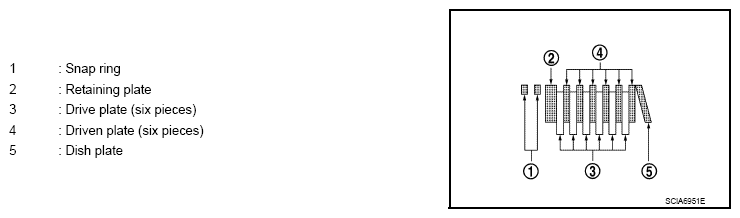

Fig 1: Identifying Direct Clutch Component Parts
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check the order of plates.
Install snap rings to direct clutch drum using a flat-bladed screwdriver.
CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
Fig 2: Installing Snap Ring From High And Low Reverse Clutch Drum Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
