Removal and Installation: Removal

  1. Remove the glove box assembly. Refer to "EXPLODED VIEW ".
  2. Disconnect AWD control unit harness connector.

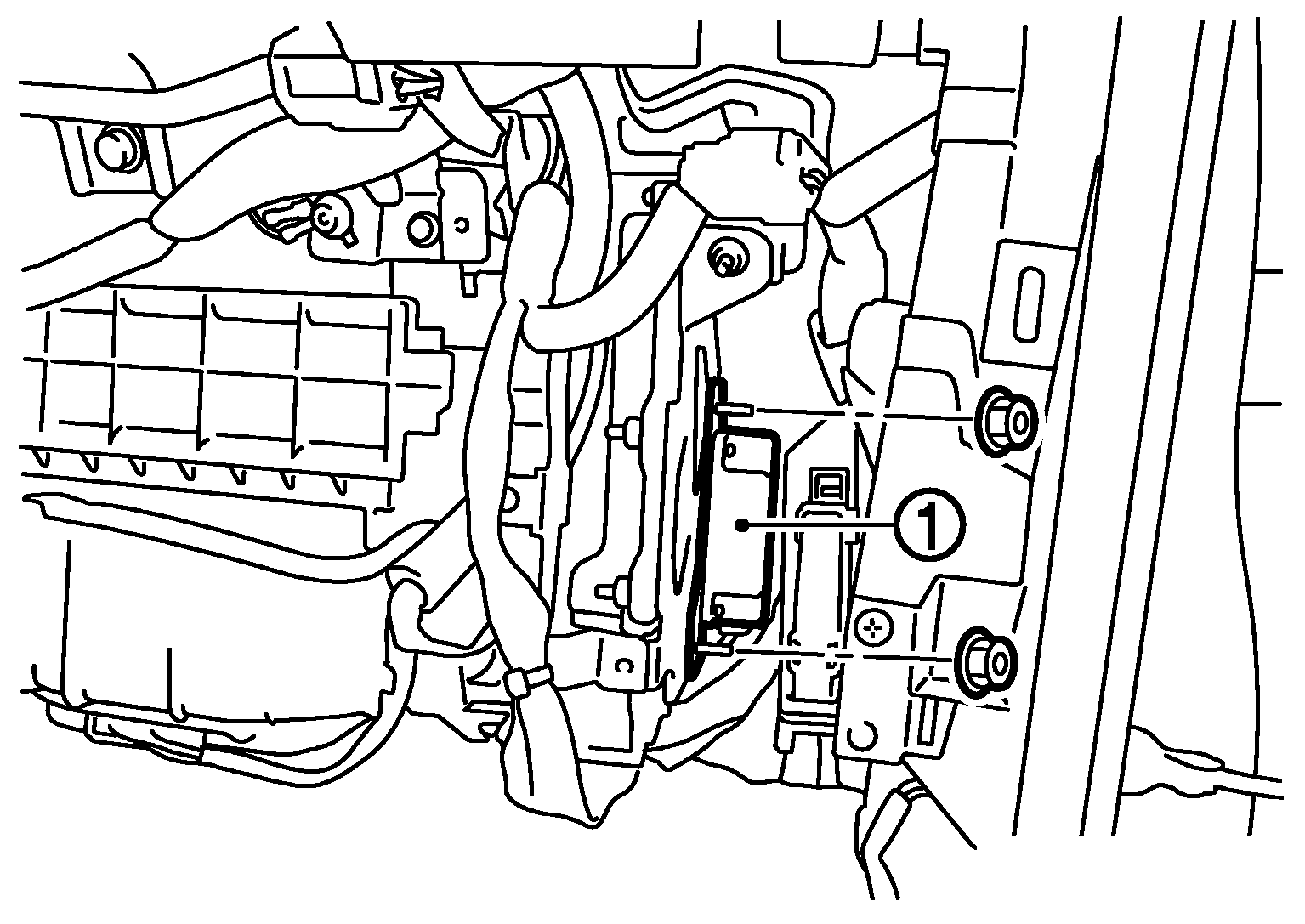

    Fig 1: Locating AWD Control Unit And Mounting Nuts
    G05218998Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove AWD control unit (1) mounting nuts.
  4. Remove AWD control unit.
