Exploded View: Removal

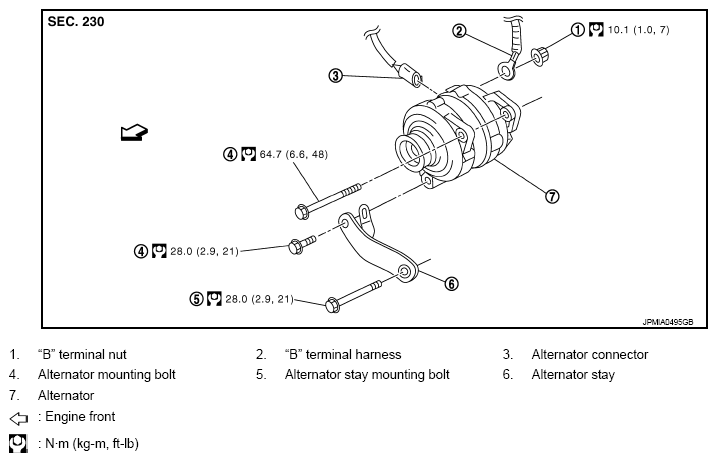

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
