Exploded View: Disassembly

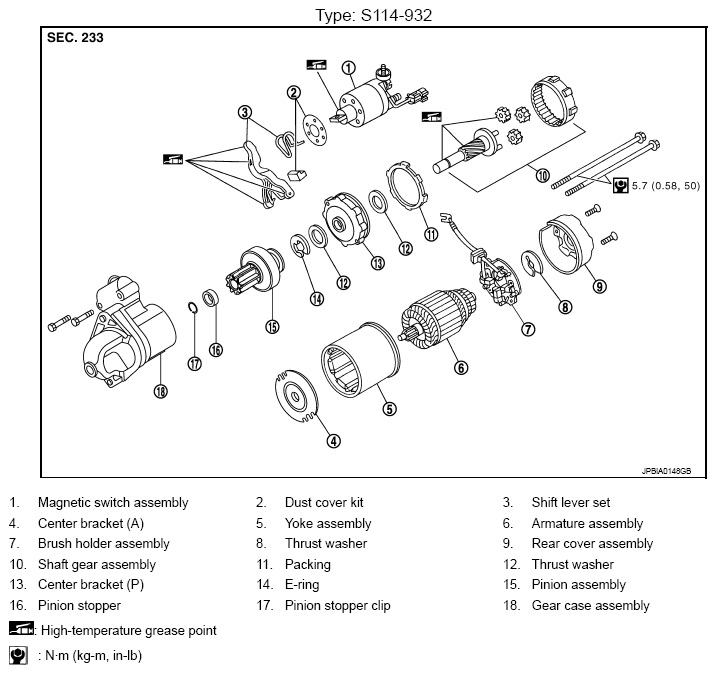

Fig 1: Disassembled View Of Starter Motor With Torque Specifications (Type: S114-932)
G08736370Courtesy of NISSAN NORTH AMERICA, INC.
