DTC P0453: EVAP Control System Pressure Sensor: Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

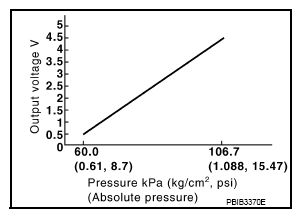

Fig 1: EVAP Control System Pressure Sensor Pressure Graph

Courtesy of NISSAN NORTH AMERICA, INC.
