Component Parts Location

WARNING: This page is about a different variant/trim than selected.

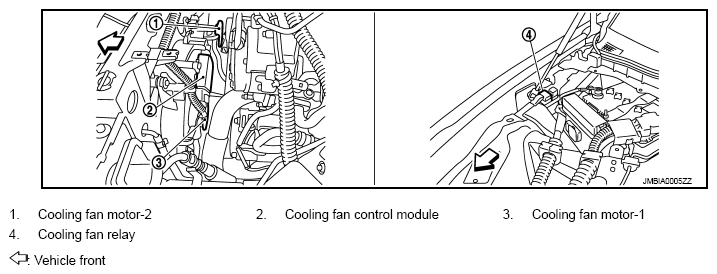

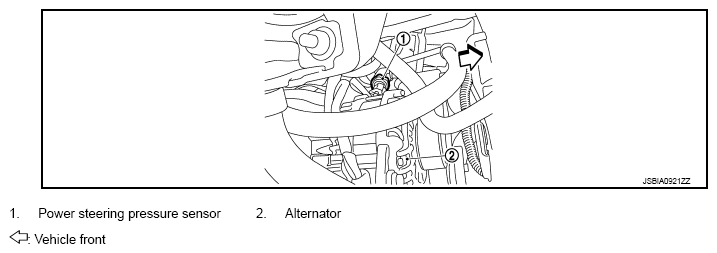

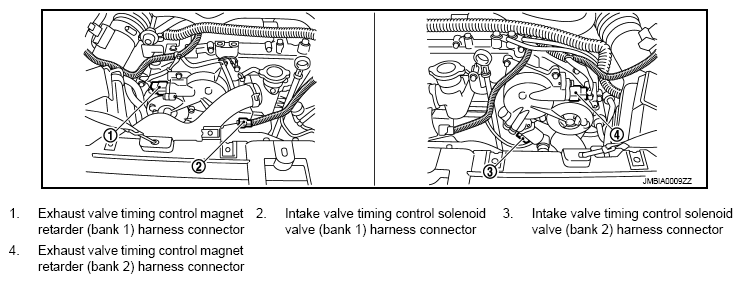

Fig 1: Automatic Speed Control Device Components Parts Location (1 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

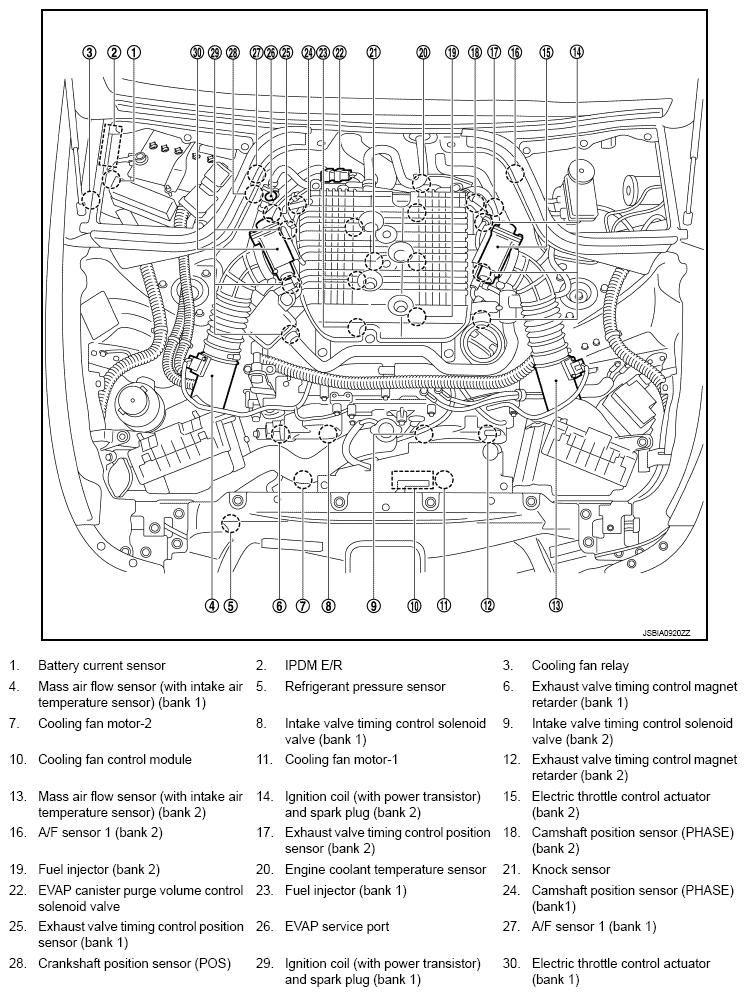

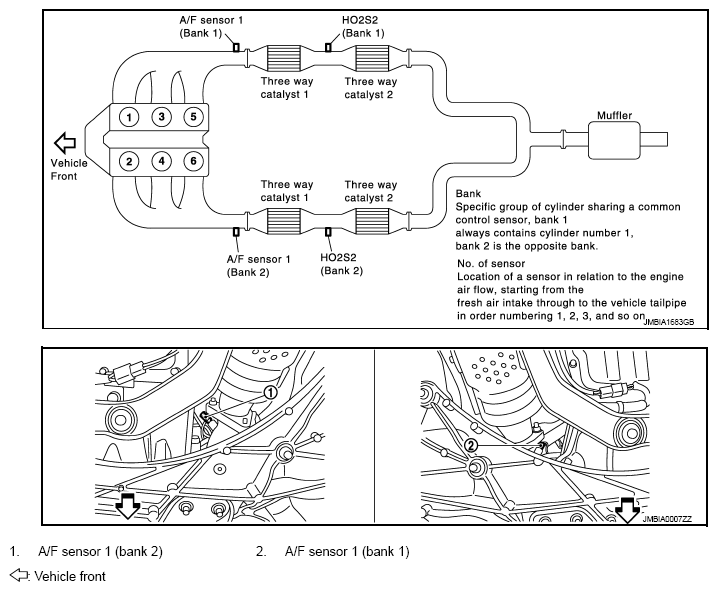

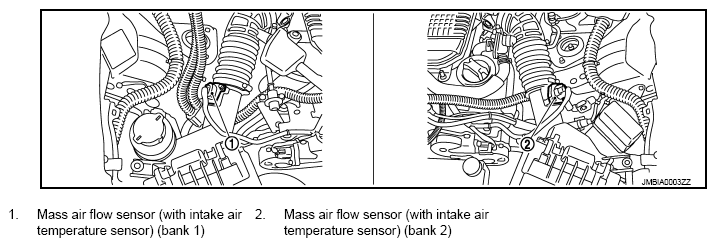

Fig 2: Automatic Speed Control Device Components Parts Location (2 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

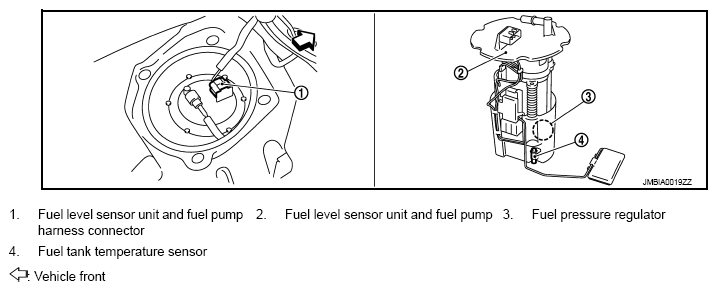

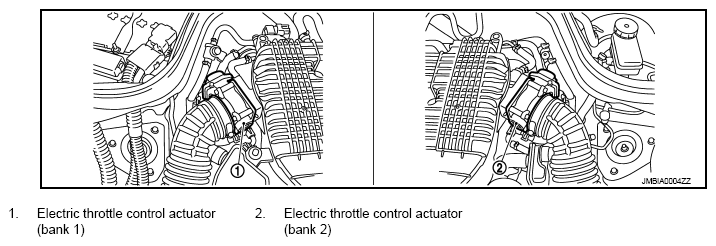

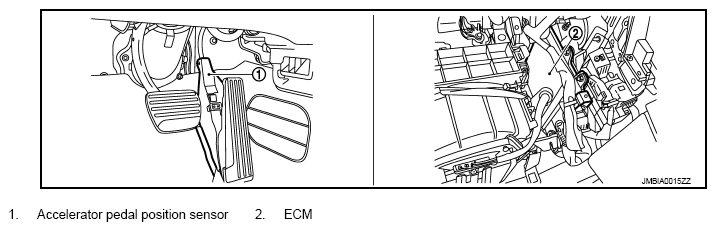

Fig 3: Automatic Speed Control Device Components Parts Location (3 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

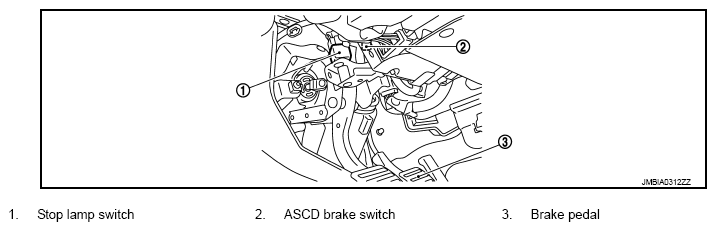

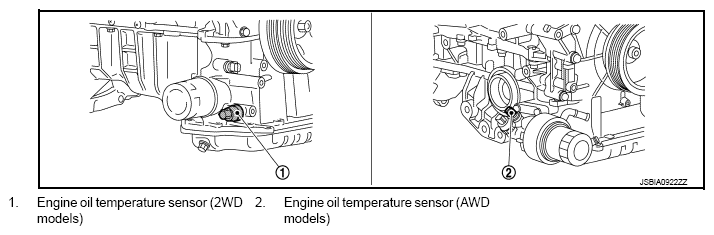

Fig 4: Automatic Speed Control Device Components Parts Location (4 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

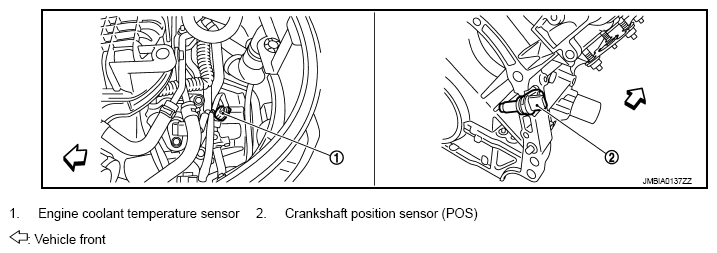

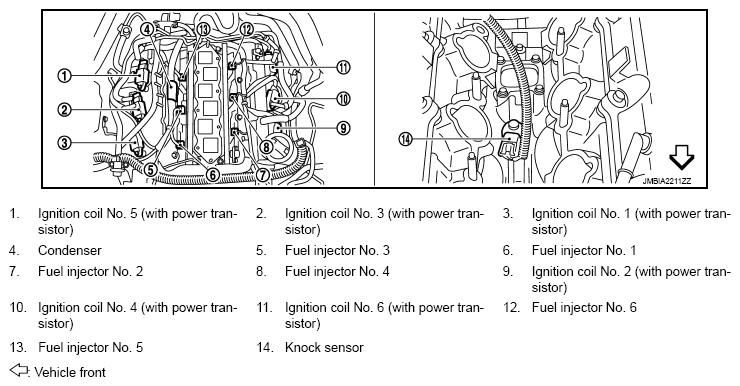

Fig 5: Automatic Speed Control Device Components Parts Location (5 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Automatic Speed Control Device Components Parts Location (6 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

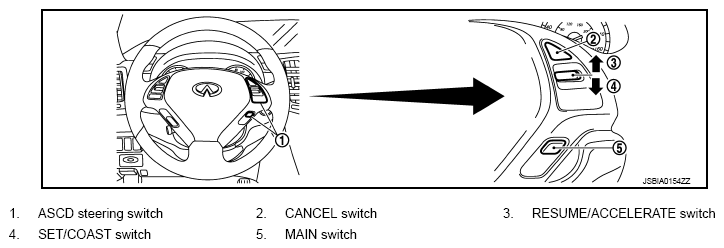

Fig 7: Automatic Speed Control Device Components Parts Location (7 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Automatic Speed Control Device Components Parts Location (8 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Automatic Speed Control Device Components Parts Location (9 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Automatic Speed Control Device Components Parts Location (10 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Automatic Speed Control Device Components Parts Location (11 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Automatic Speed Control Device Components Parts Location (12 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Automatic Speed Control Device Components Parts Location (13 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Automatic Speed Control Device Components Parts Location (14 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Automatic Speed Control Device Components Parts Location (15 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Automatic Speed Control Device Components Parts Location (16 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Automatic Speed Control Device Components Parts Location (17 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Automatic Speed Control Device Components Parts Location (18 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Automatic Speed Control Device Components Parts Location (19 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.
