Component Parts Location

WARNING: This page is about a different variant/trim than selected.

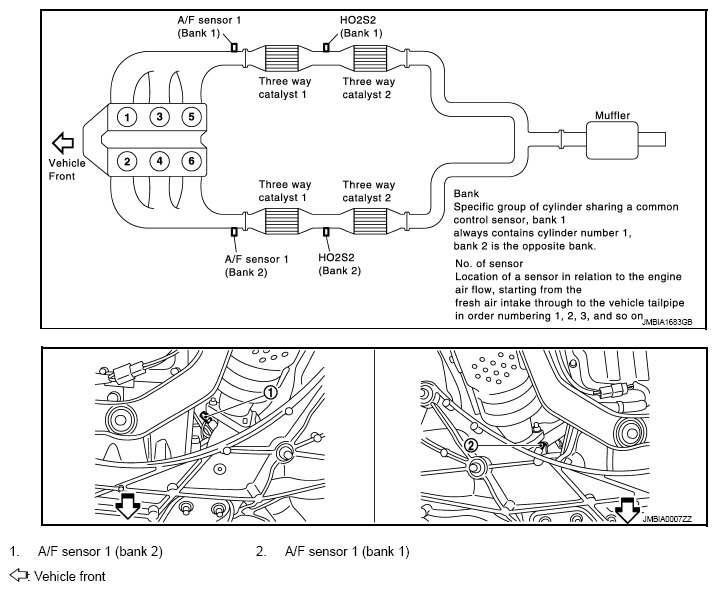

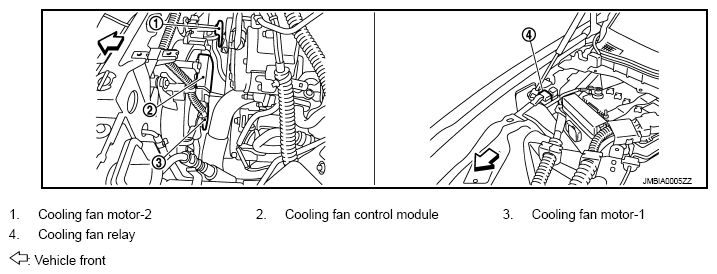

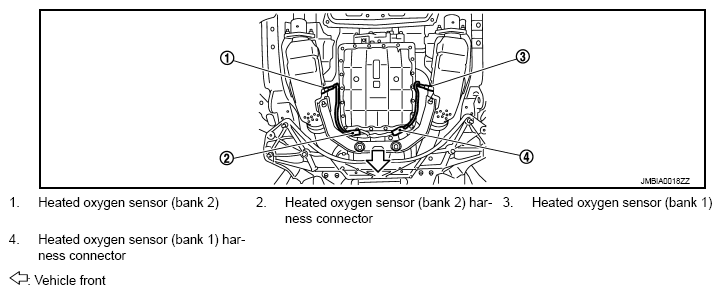

Fig 1: Electric Ignition System Components Parts Location (1 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

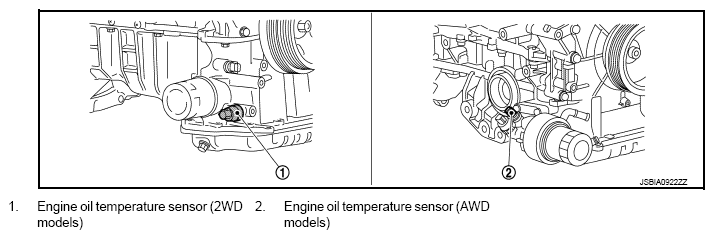

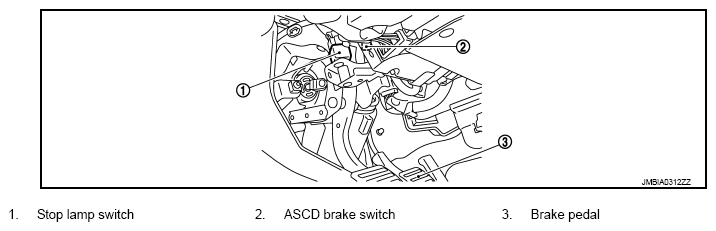

Fig 2: Electric Ignition System Components Parts Location (2 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

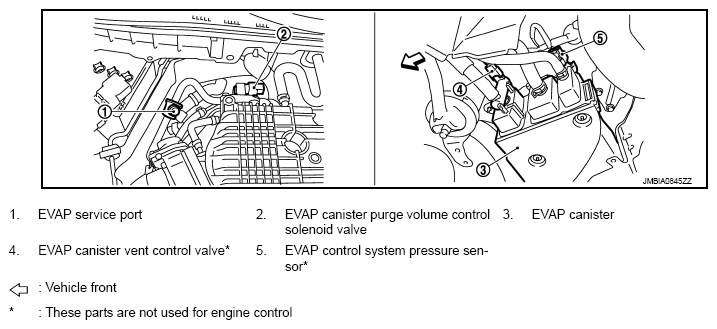

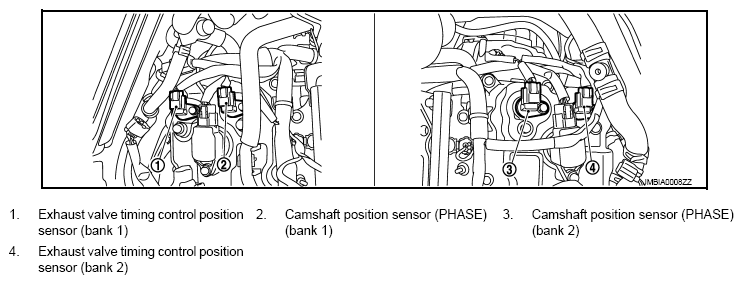

Fig 3: Electric Ignition System Components Parts Location (3 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

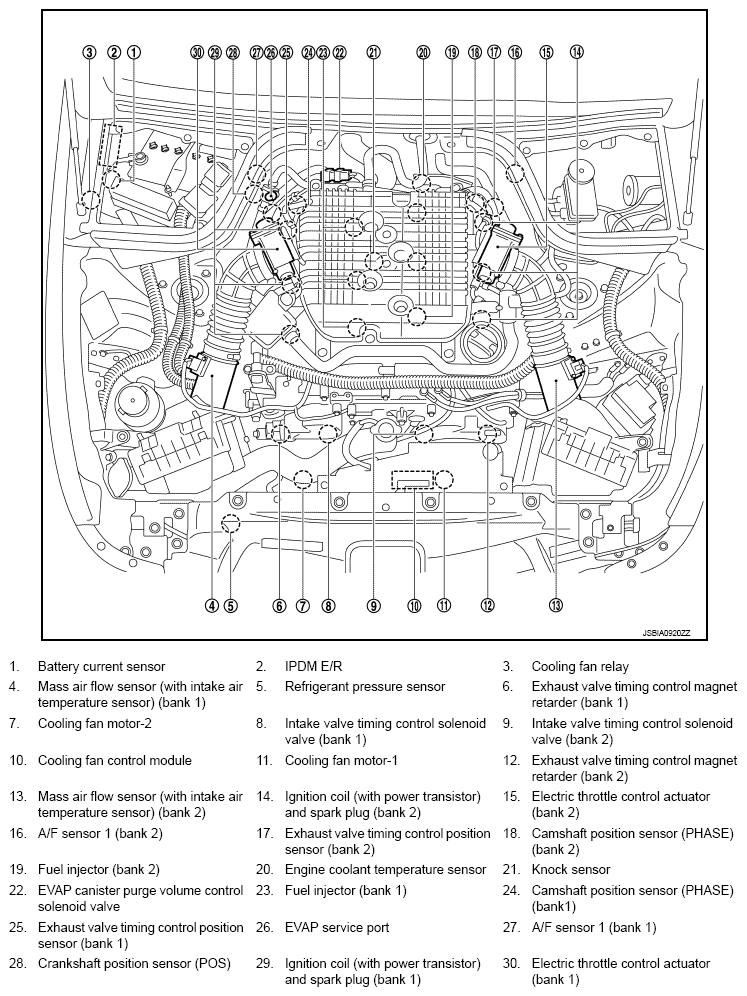

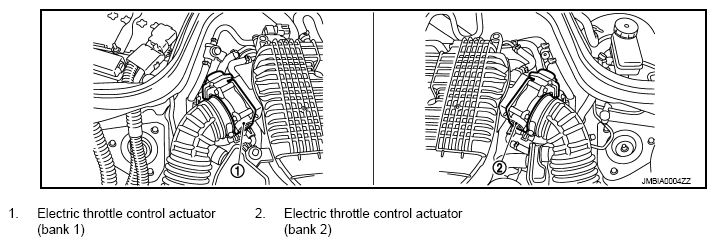

Fig 4: Electric Ignition System Components Parts Location (4 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

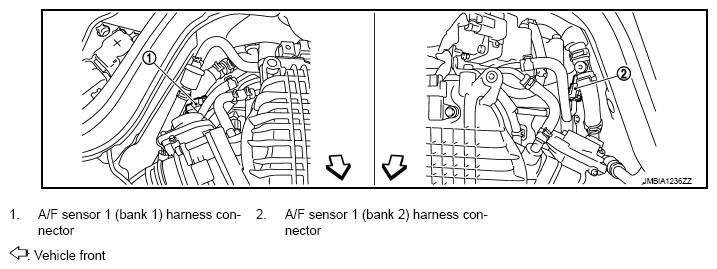

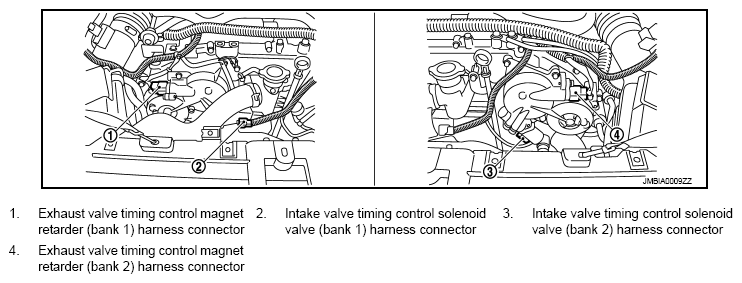

Fig 5: Electric Ignition System Components Parts Location (5 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

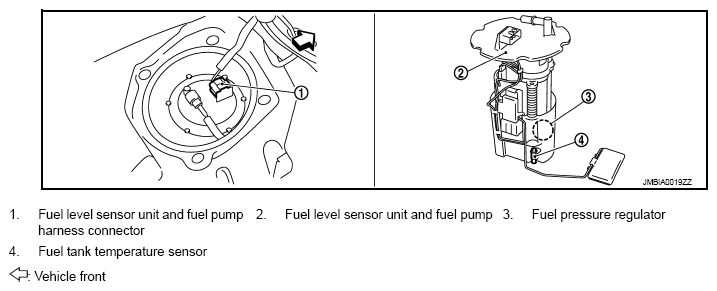

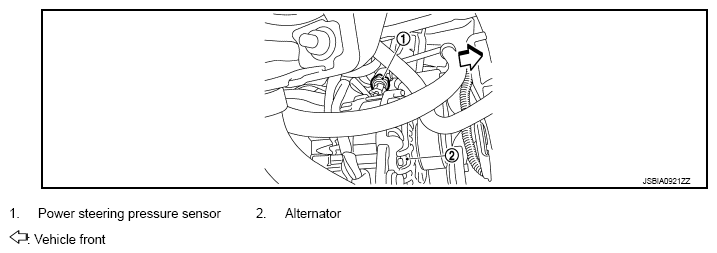

Fig 6: Electric Ignition System Components Parts Location (6 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

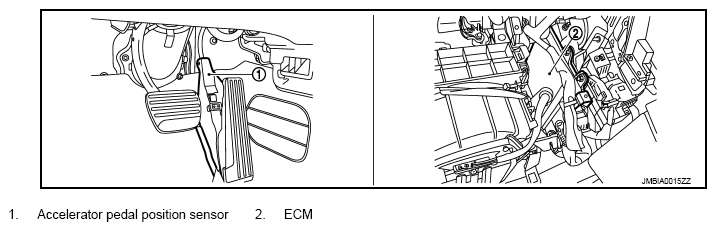

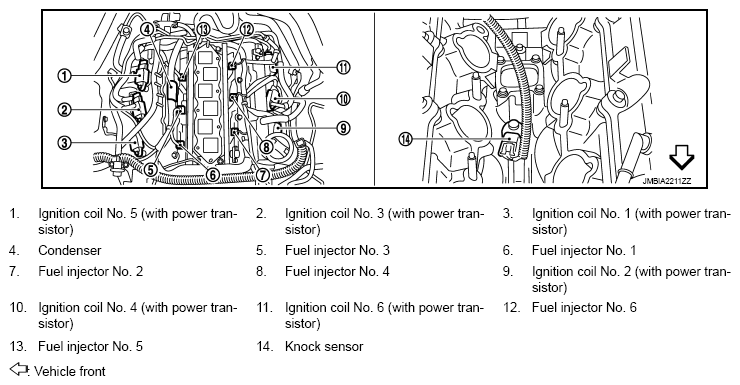

Fig 7: Electric Ignition System Components Parts Location (7 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

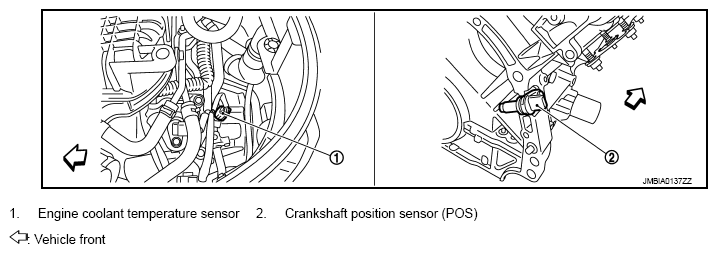

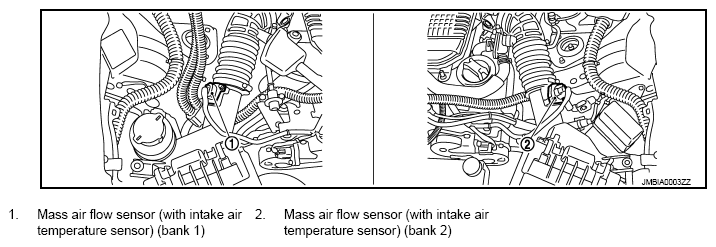

Fig 8: Electric Ignition System Components Parts Location (8 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Electric Ignition System Components Parts Location (9 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Electric Ignition System Components Parts Location (10 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Electric Ignition System Components Parts Location (11 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Electric Ignition System Components Parts Location (12 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Electric Ignition System Components Parts Location (13 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Electric Ignition System Components Parts Location (14 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Electric Ignition System Components Parts Location (15 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Electric Ignition System Components Parts Location (16 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Electric Ignition System Components Parts Location (17 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Electric Ignition System Components Parts Location (18 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Electric Ignition System Components Parts Location (19 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.
