Component Parts Location

WARNING: This page is about a different variant/trim than selected.

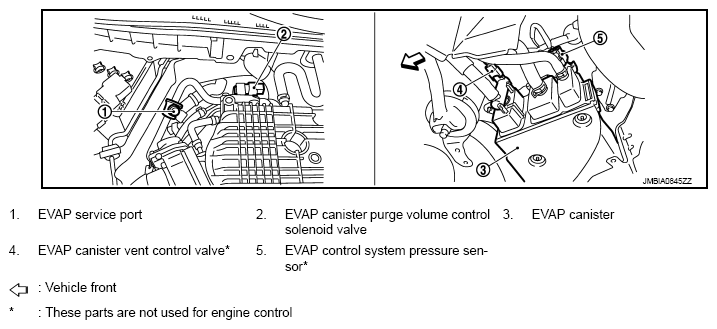

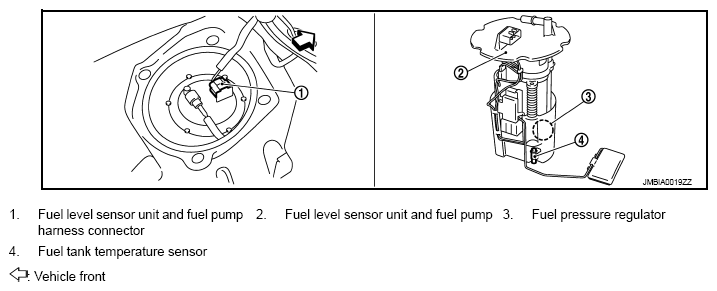

Fig 1: Engine Control System Component Parts Location (1 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

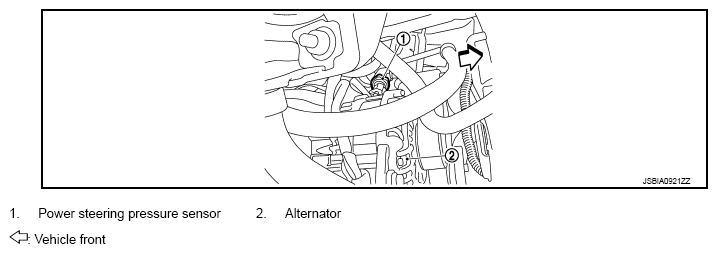

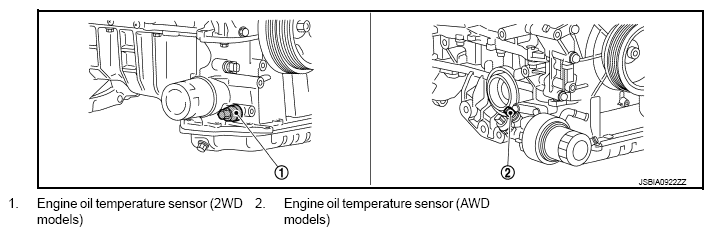

Fig 2: Engine Control System Component Parts Location (2 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

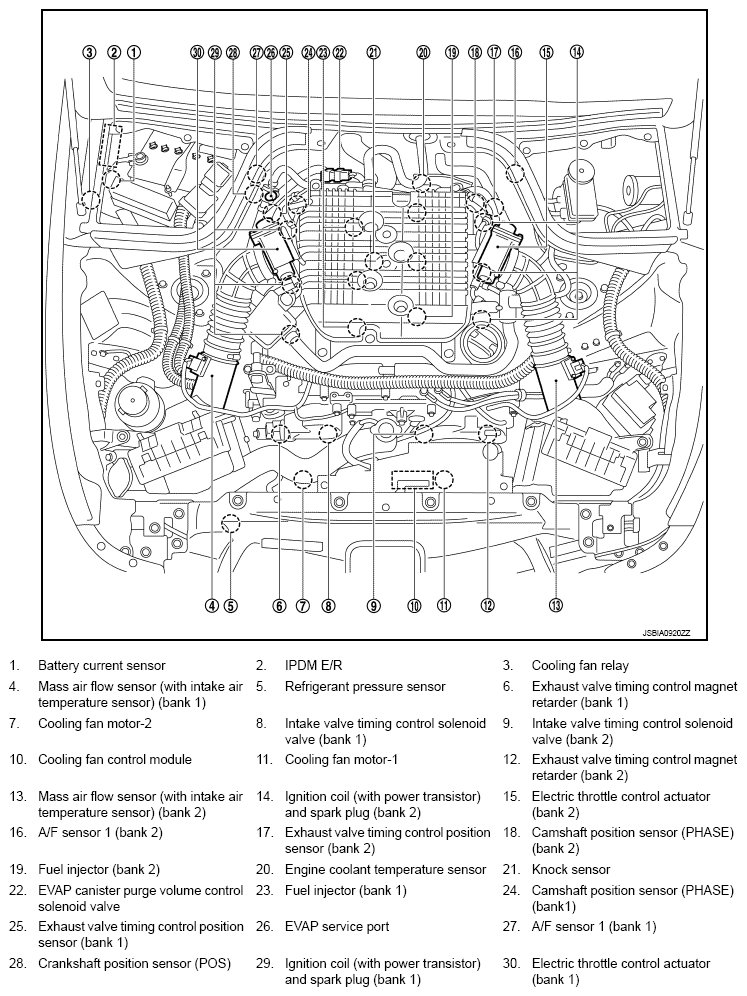

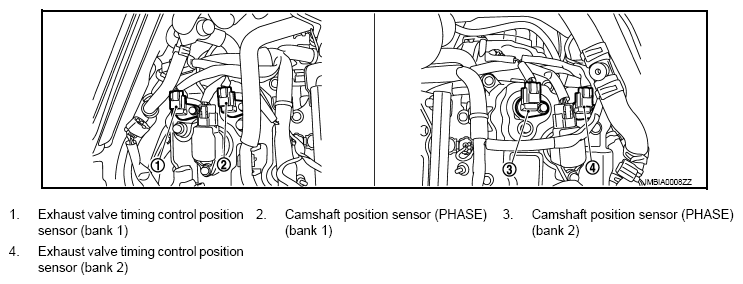

Fig 3: Engine Control System Component Parts Location (3 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

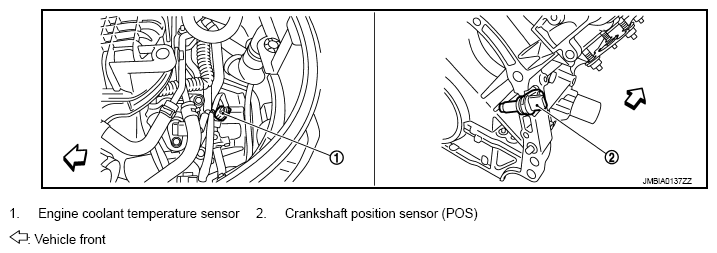

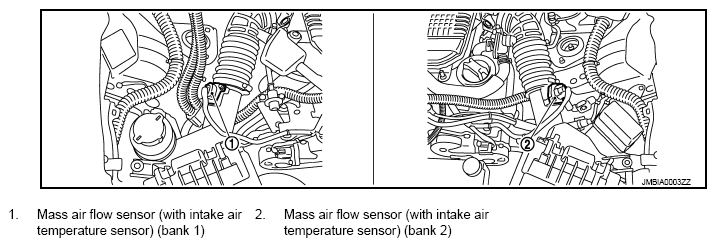

Fig 4: Engine Control System Component Parts Location (4 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

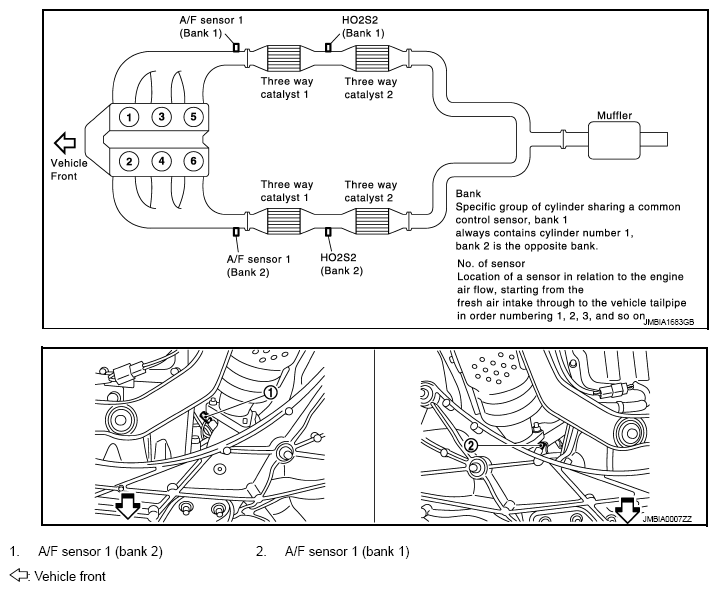

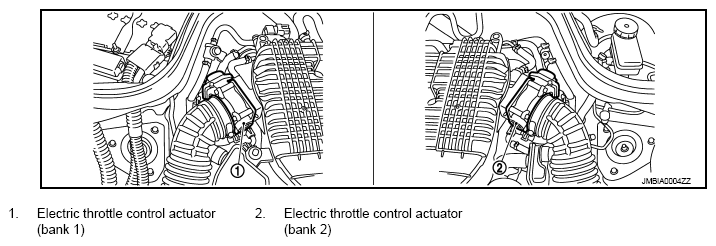

Fig 5: Engine Control System Component Parts Location (5 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

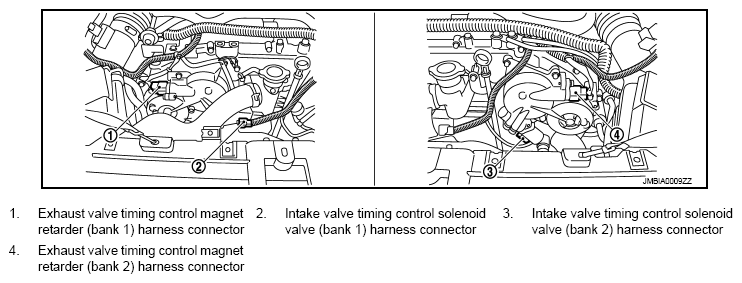

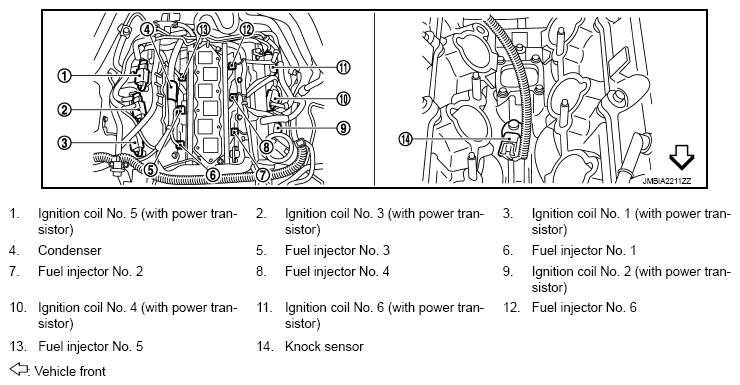

Fig 6: Engine Control System Component Parts Location (6 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

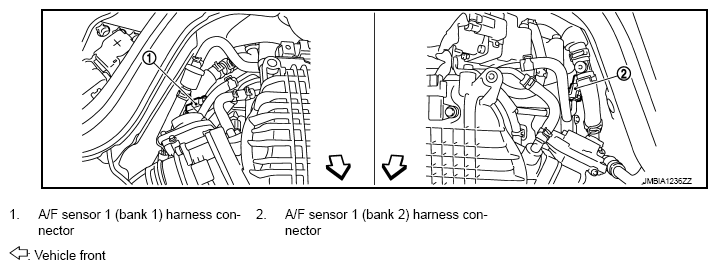

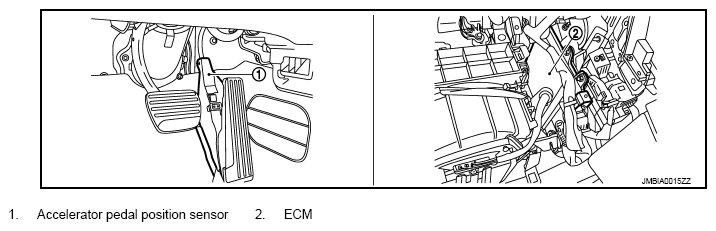

Fig 7: Engine Control System Component Parts Location (7 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

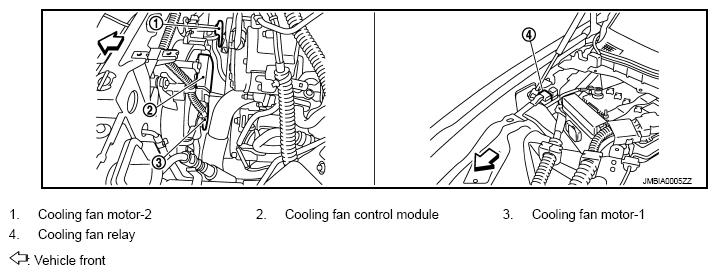

Fig 8: Engine Control System Component Parts Location (8 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Engine Control System Component Parts Location (9 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Engine Control System Component Parts Location (10 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Engine Control System Component Parts Location (11 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Engine Control System Component Parts Location (12 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Engine Control System Component Parts Location (13 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Engine Control System Component Parts Location (14 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Engine Control System Component Parts Location (15 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Engine Control System Component Parts Location (16 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Engine Control System Component Parts Location (17 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Engine Control System Component Parts Location (18 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Engine Control System Component Parts Location (19 Of 19)

Courtesy of NISSAN NORTH AMERICA, INC.
