Component Parts Location

WARNING: This page is about a different variant/trim than selected.

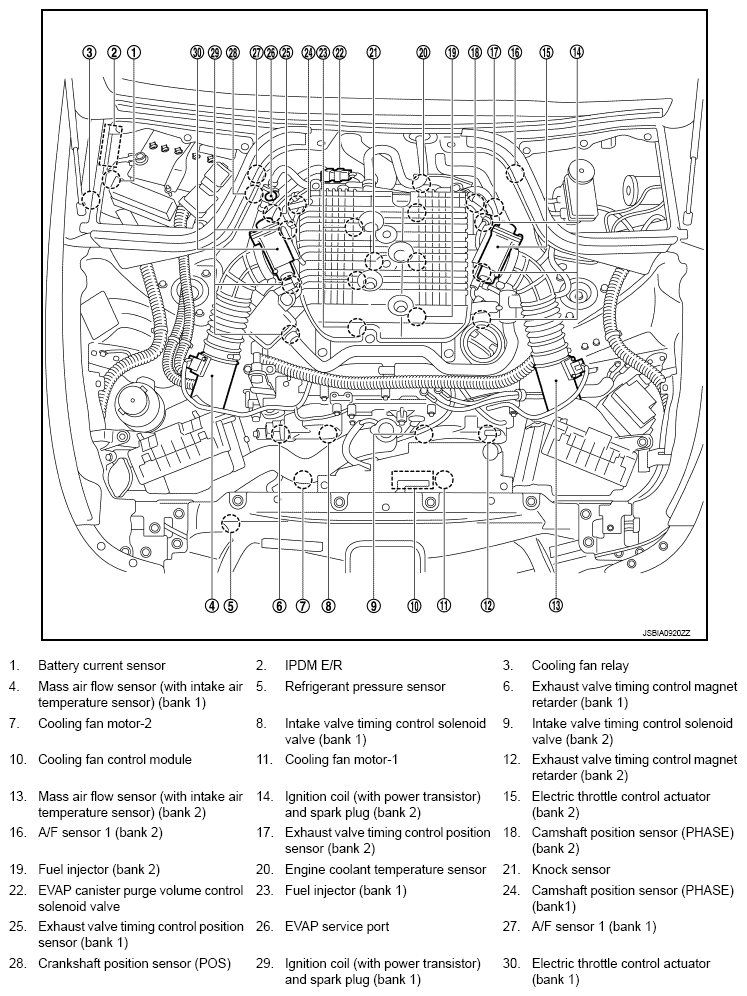

Fig 1: Intake Valve Timing Control Components Parts Location (1 Of 19)
G09009948Courtesy of NISSAN NORTH AMERICA, INC.

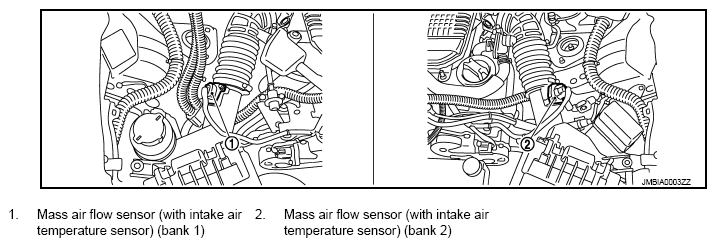

Fig 2: Intake Valve Timing Control Components Parts Location (2 Of 19)
G09009949Courtesy of NISSAN NORTH AMERICA, INC.

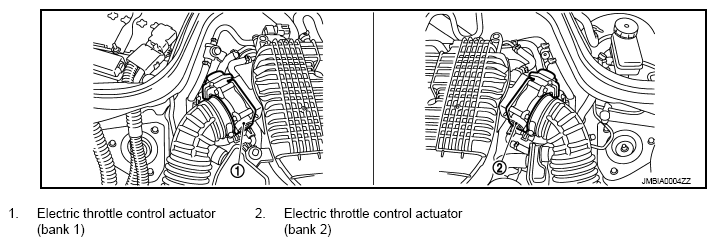

Fig 3: Intake Valve Timing Control Components Parts Location (3 Of 19)
G09009950Courtesy of NISSAN NORTH AMERICA, INC.

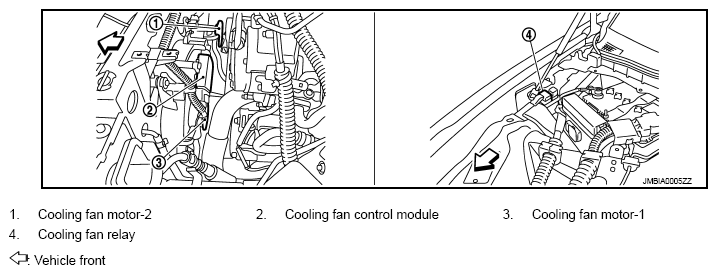

Fig 4: Intake Valve Timing Control Components Parts Location (4 Of 19)
G09009951Courtesy of NISSAN NORTH AMERICA, INC.

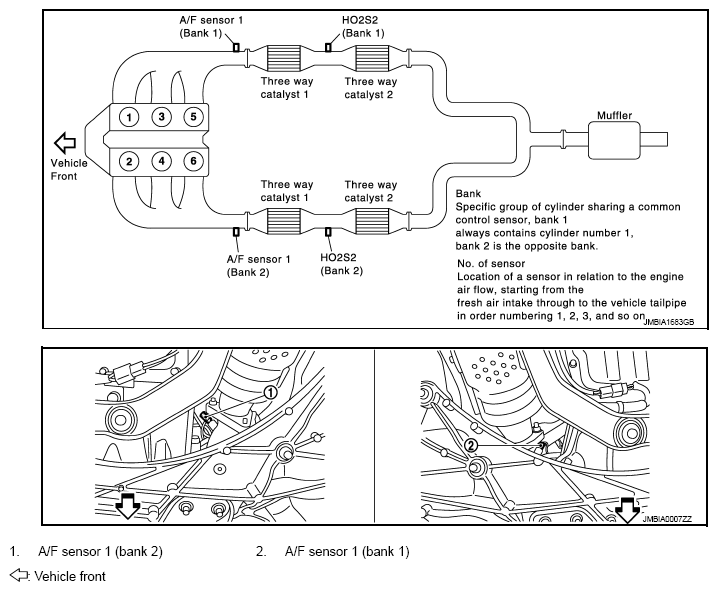

Fig 5: Intake Valve Timing Control Components Parts Location (5 Of 19)
G09009952Courtesy of NISSAN NORTH AMERICA, INC.

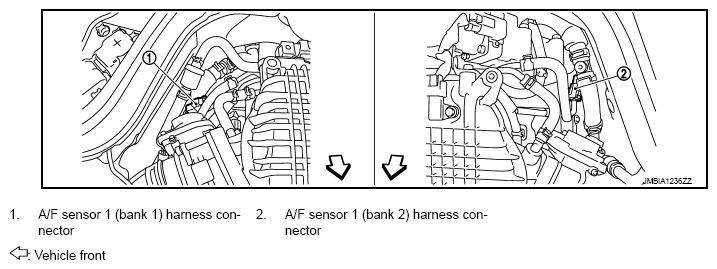

Fig 6: Intake Valve Timing Control Components Parts Location (6 Of 19)
G09009953Courtesy of NISSAN NORTH AMERICA, INC.

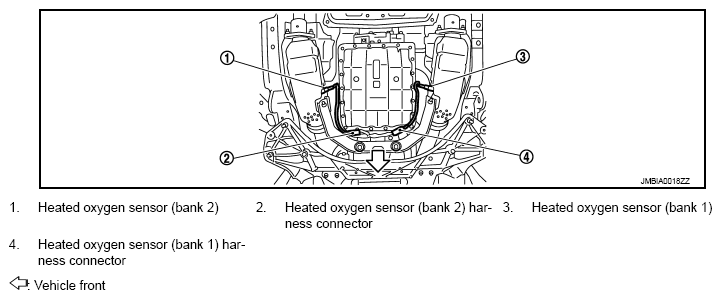

Fig 7: Intake Valve Timing Control Components Parts Location (7 Of 19)
G09009954Courtesy of NISSAN NORTH AMERICA, INC.

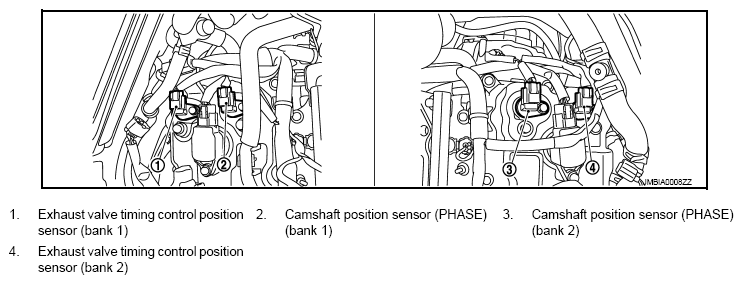

Fig 8: Intake Valve Timing Control Components Parts Location (8 Of 19)
G09009955Courtesy of NISSAN NORTH AMERICA, INC.

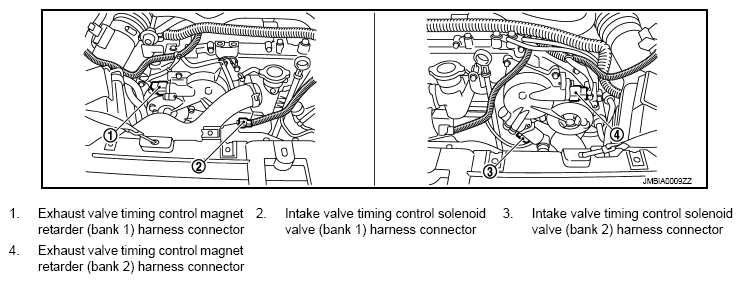

Fig 9: Intake Valve Timing Control Components Parts Location (9 Of 19)
G09009956Courtesy of NISSAN NORTH AMERICA, INC.

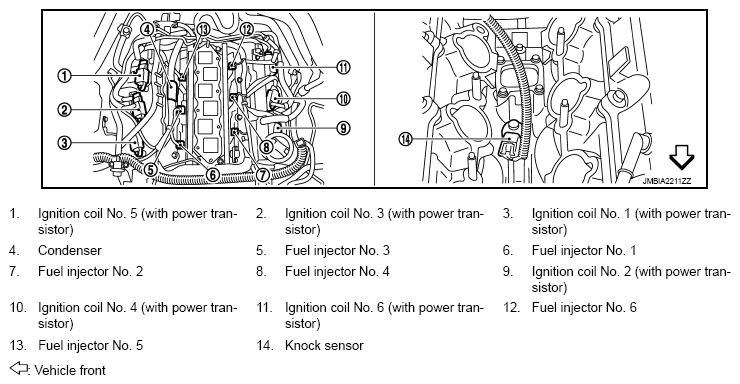

Fig 10: Intake Valve Timing Control Components Parts Location (10 Of 19)
G09009957Courtesy of NISSAN NORTH AMERICA, INC.

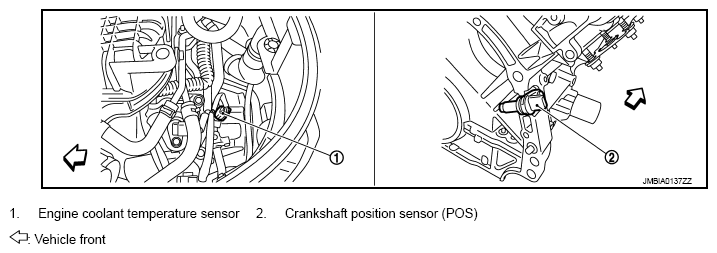

Fig 11: Intake Valve Timing Control Components Parts Location (11 Of 19)
G09009958Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Intake Valve Timing Control Components Parts Location (12 Of 19)
G09009959Courtesy of NISSAN NORTH AMERICA, INC.

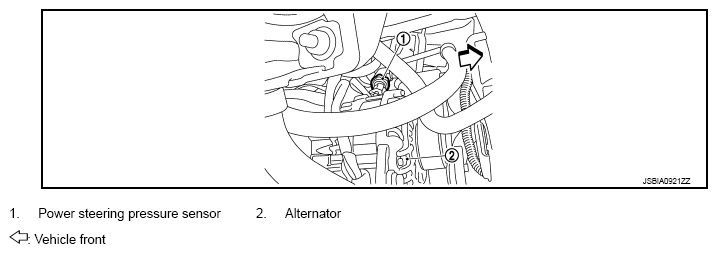

Fig 13: Intake Valve Timing Control Components Parts Location (13 Of 19)
G09009960Courtesy of NISSAN NORTH AMERICA, INC.

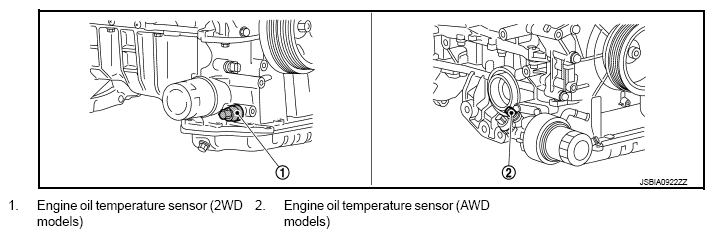

Fig 14: Intake Valve Timing Control Components Parts Location (14 Of 19)
G09009961Courtesy of NISSAN NORTH AMERICA, INC.

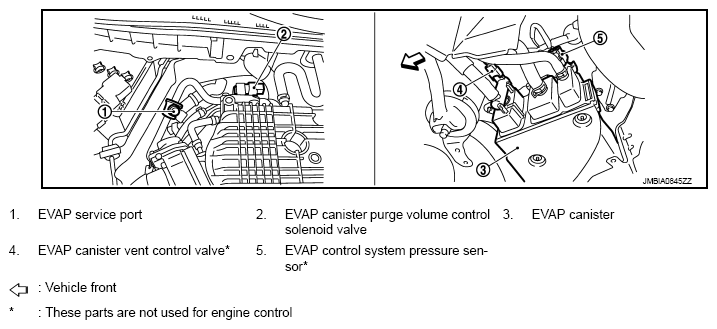

Fig 15: Intake Valve Timing Control Components Parts Location (15 Of 19)
G09009962Courtesy of NISSAN NORTH AMERICA, INC.

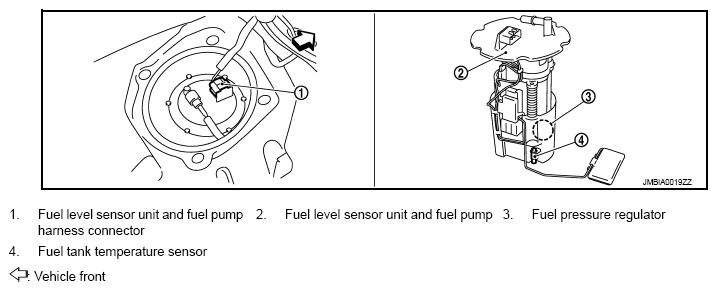

Fig 16: Intake Valve Timing Control Components Parts Location (16 Of 19)
G09009963Courtesy of NISSAN NORTH AMERICA, INC.

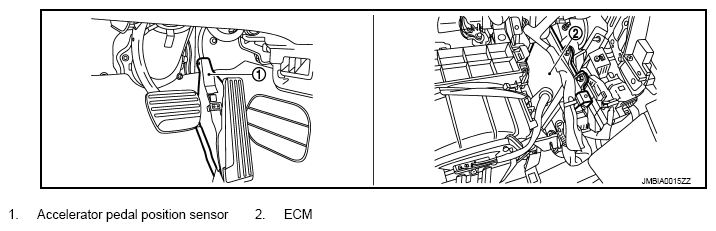

Fig 17: Intake Valve Timing Control Components Parts Location (17 Of 19)
G09009964Courtesy of NISSAN NORTH AMERICA, INC.

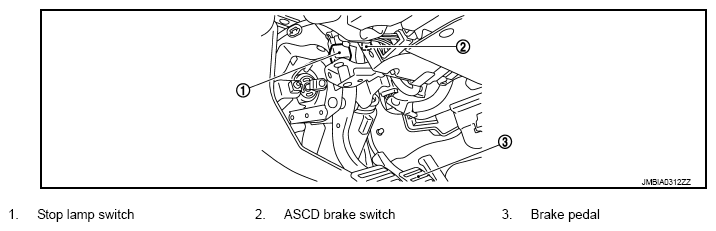

Fig 18: Intake Valve Timing Control Components Parts Location (18 Of 19)
G09009965Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Intake Valve Timing Control Components Parts Location (19 Of 19)
G09009966Courtesy of NISSAN NORTH AMERICA, INC.
