Exploded View

WARNING: This page is about a different variant/trim than selected.

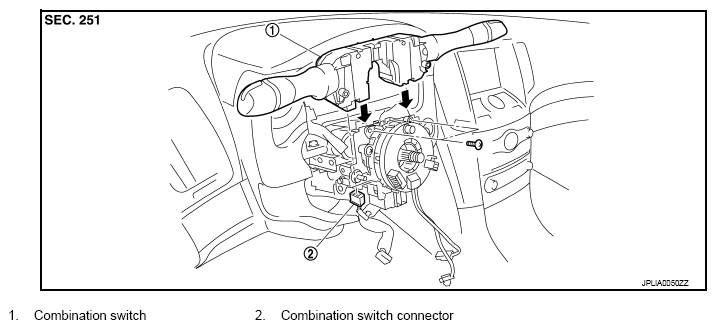

Fig 1: Identifying Combination Switch And Connector
G09166804Courtesy of NISSAN NORTH AMERICA, INC.
