Work Support
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
| Service item |
Setting item |
Setting |
| SET I/L D-UNLCK INTCON |
ON |
With the interior room lamp timer function |
| OFF |
Without the interior room lamp timer function |
| ROOM LAMP TIMER SET |
MODE 2 |
7.5 sec. |

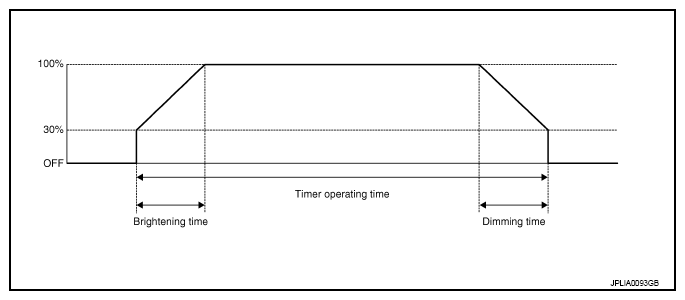

Sets the interior room lamp ON time. (Timer operating time) |
| MODE 3 |
15 sec. |
| MODE 4 |
30 sec. |
| ROOM LAMP ON TIME SET |
MODE 1 |
0.5 sec. |
Sets the interior room lamp gradual brightening time. |
| MODE 2 |
1 sec. |
| MODE 3 |
2 sec. |
| MODE 4 |
3 sec. |
| MODE 5 |
0 sec. |
| ROOM LAMP OFF TIME SET |
MODE 1 |
0.5 sec. |
Sets the interior room lamp gradual dimming time. |
| MODE 2 |
1 sec. |
| MODE 3 |
2 sec. |
| MODE 4 |
3 sec. |
| R LAMP TIMER LOGIC SET |
MODE 1 |
Interior room lamp timer activates with synchronizing all doors. |
| MODE 2 |
Interior room lamp timer activates with synchronizing the driver door only. |
