Exploded View

WARNING: This page is about a different variant/trim than selected.

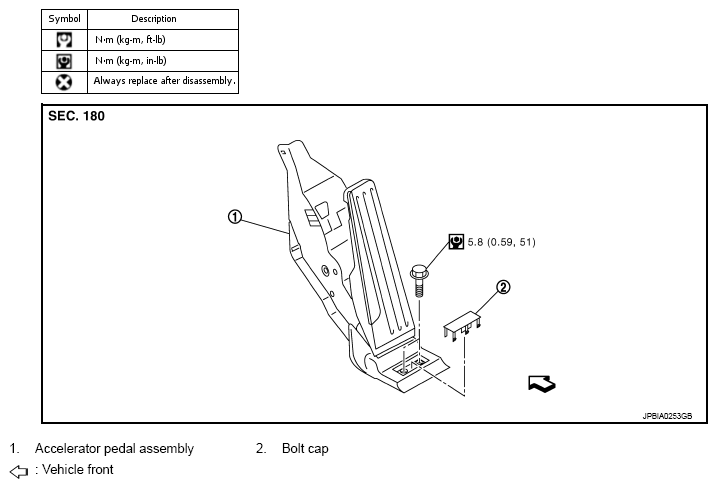

Fig 1: Exploded View Of Accelerator Control System With Torque Specifications
G09007324Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
