Symptom Table 1: Notes

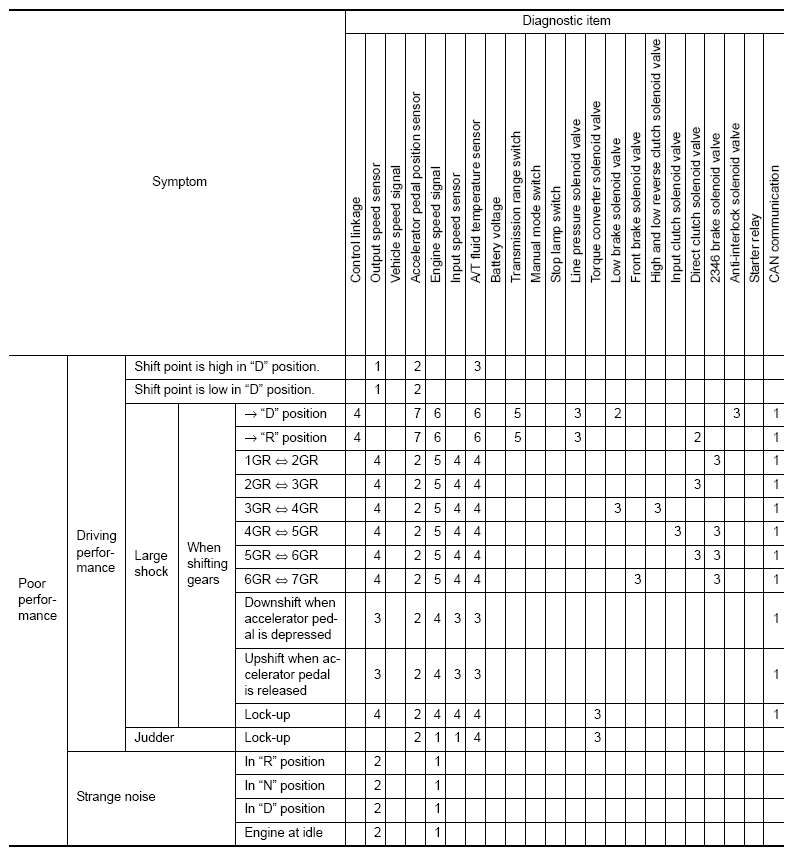

Fig 1: TCM Symptom Diagnosis Chart (1 Of 10)

G08740146

Courtesy of NISSAN NORTH AMERICA, INC.

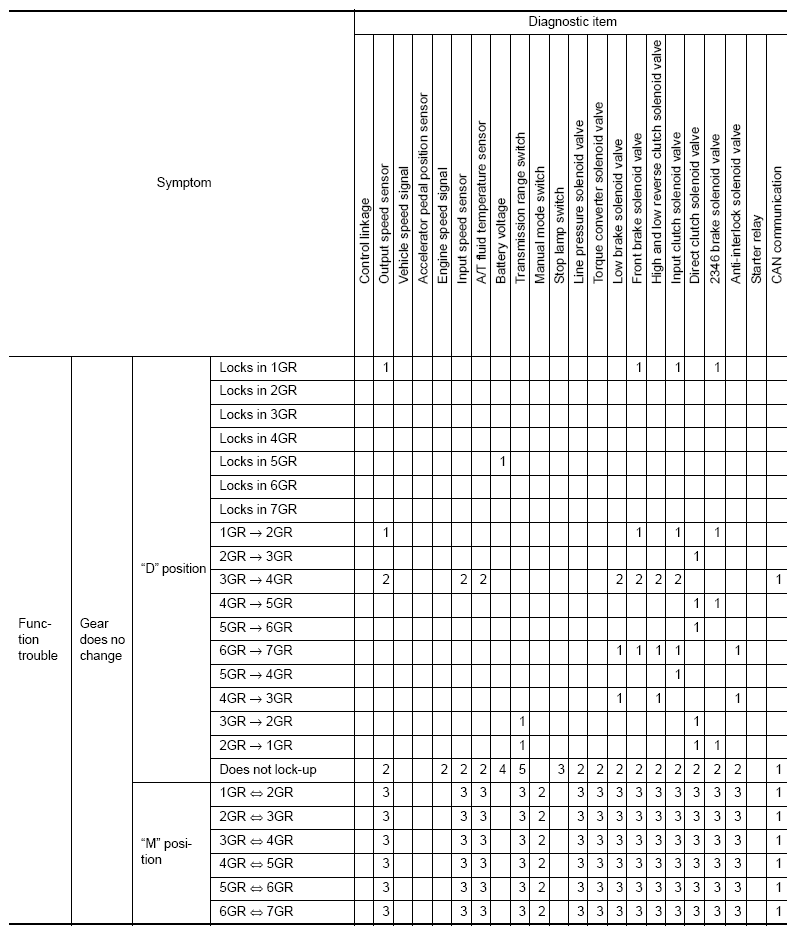

Fig 2: TCM Symptom Diagnosis Chart (2 Of 10)

G08740147

Courtesy of NISSAN NORTH AMERICA, INC.

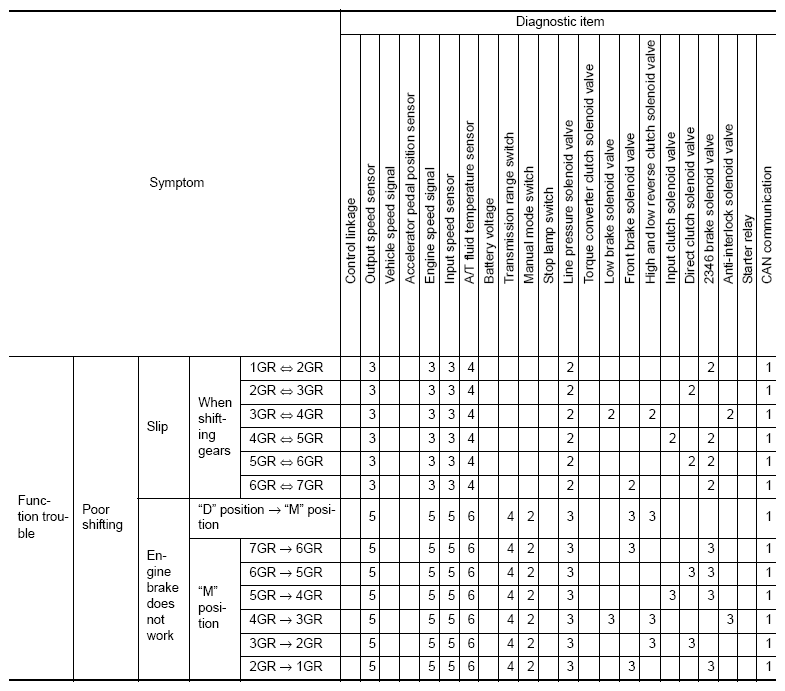

Fig 3: TCM Symptom Diagnosis Chart (3 Of 10)

G08740148

Courtesy of NISSAN NORTH AMERICA, INC.

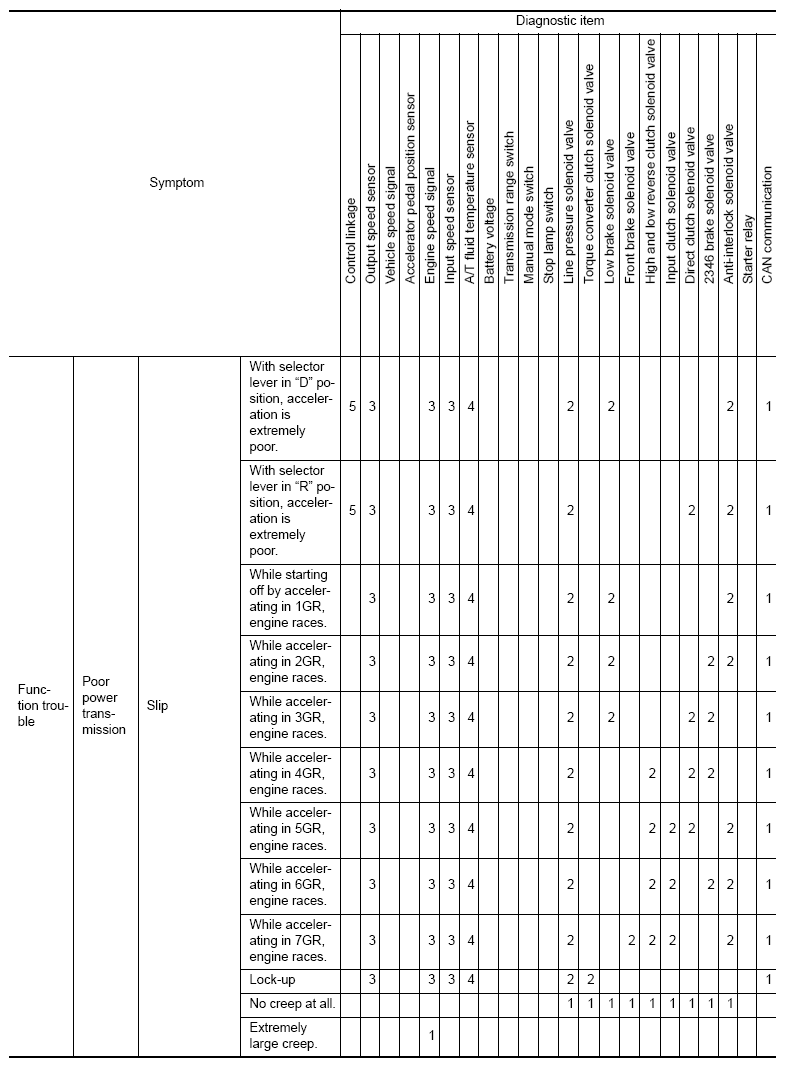

Fig 4: TCM Symptom Diagnosis Chart (4 Of 10)

G08740149

Courtesy of NISSAN NORTH AMERICA, INC.

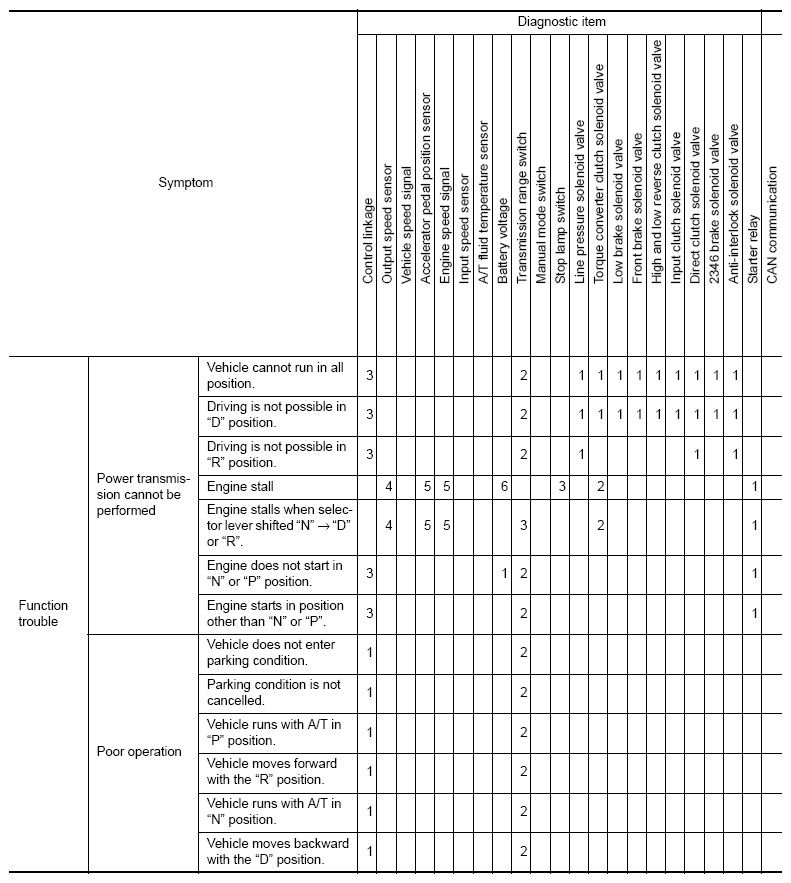

Fig 5: TCM Symptom Diagnosis Chart (5 Of 10)

G08740150

Courtesy of NISSAN NORTH AMERICA, INC.
