Cross-Sectional View

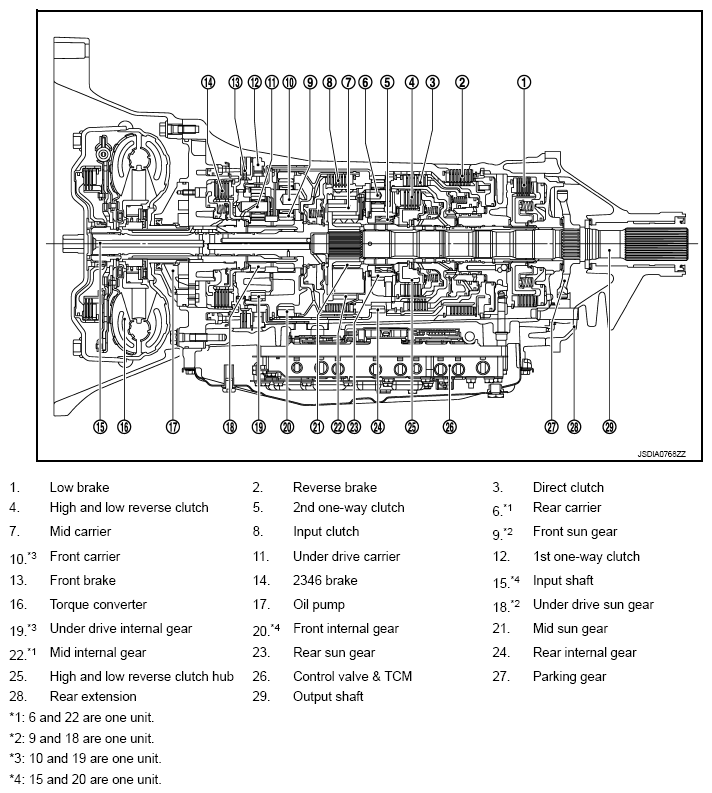

Fig 1: Cross-Sectional View Of Shift Mechanism
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
