MANUAL MODE: System Diagram

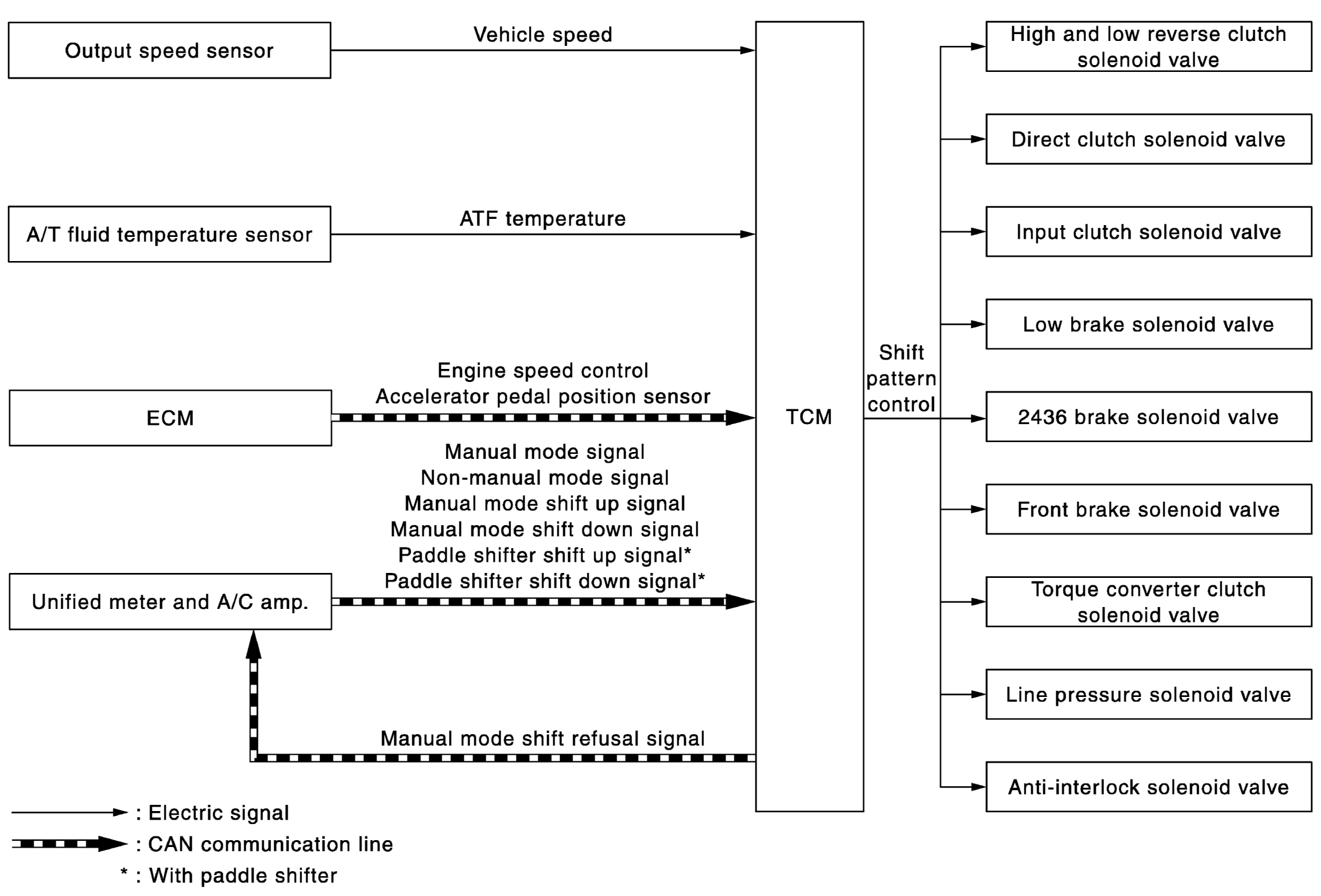

Fig 1: Manual Mode System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
